Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

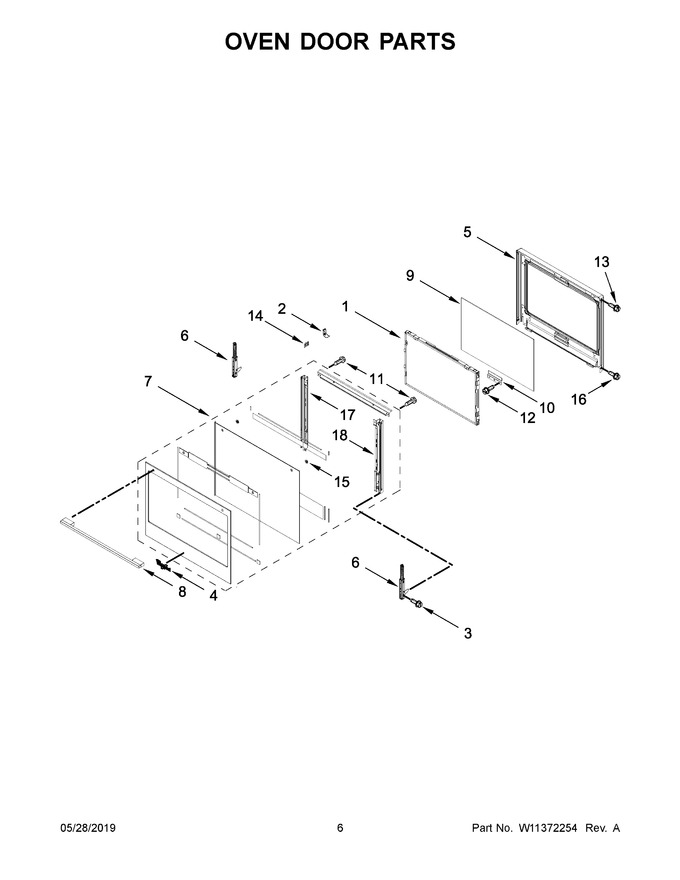

1	WPW10347596		Assembly, Window Pack   (Replaces: W10347596)			Immediately	$ 307.67
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 157.87
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.75
4	W11178521		Nameplate   (Replaces: W10884775)			Immediately	$ 63.13
5	WPW10709147		Assembly, Liner   (Replaces: W10709147)				$ 349.23
6	W11045551		Hinge, Slow Close Door				$ 103.14
7	W11028416		Assembly, Door (stainless)		Appelez-nous	-
8	W11248076		Assembly, Handle (stainless)   (Replaces: W11176370)				$ 203.48
9	W10827059		Glass, Inner   (Replaces: W10678524)				$ 190.29
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 156.06
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.88
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
13	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.19
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 167.75
15	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.10
16	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.44
17	W10284278		Rail, Door Side (left)		Appelez-nous	-
18	W10284279		Rail, Door Side (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
