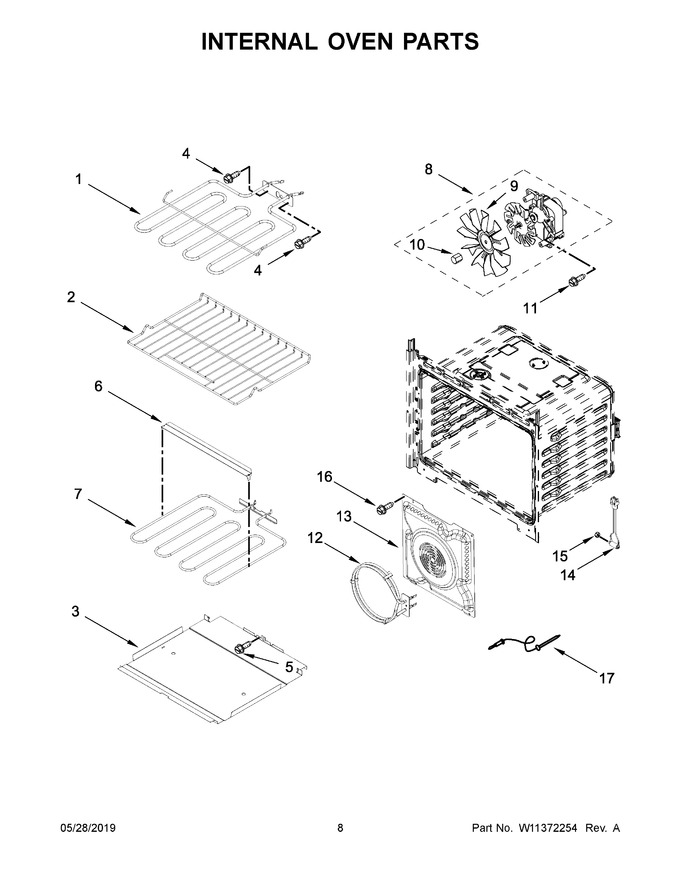

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10260252 | Element, Broil (Replaces: W10260252) |
|
$ 132.83 | |||||
| 2 | W11218798 | Rack, Oven (Replaces: W11122597) |
|
Immediately | $ 358.35 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 102.53 | ||||
| 8 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 176.41 | ||||
| 9 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 10 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 11 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 | |||||
| 12 | WPW10260248 | Ring, Element (Replaces: W10260248) |
|
$ 309.67 | |||||
| 13 | W11156410 | Baffle, Convection (Replaces: W10914672) |
|
- | |||||
| 14 | W11220388 | Jack, Meat Probe (Replaces: W10696226) |
|
Immediately | $ 69.63 | ||||
| 15 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 13.47 | |||||
| 16 | WP74003976 | Screw (Replaces: W10906658) |
|
$ 7.55 | |||||
| 17 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 |
