SELECT A DIAGRAM

01 - Cover Sheet

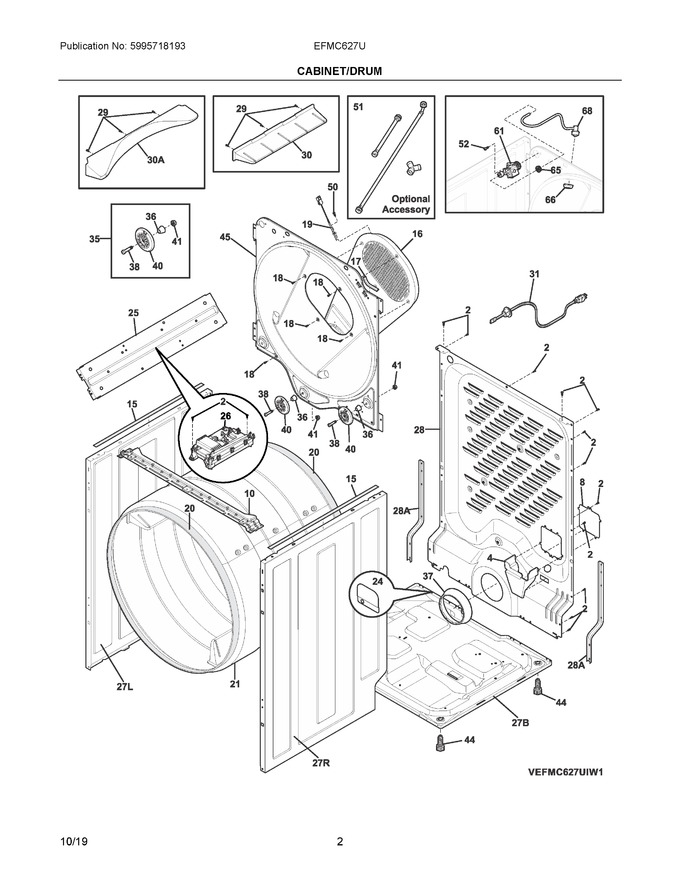

02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
4	134792100		Bracket, Main, Terminal				$ 29.07
8	137578600		Cover, Access, Terminal Block				$ 14.06
10	5304513567		Bracket, Front Panel		Appelez-nous	-
15	137031800		Cushion, Vibration, Top Panel			Immediately	$ 9.45
16	5304513571		Duct Assembly, Heat, Rear				$ 155.03
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 14.96
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
19	5304520302		Thermistor, Inlet			Immediately	$ 62.17
20	5304499489		Seal, Felt, Purple Stitches, Drum			Immediately	$ 62.99
21	137610710		Drum, 2 Rib 38				$ 474.08
24	137537100		Cover, Back Sheet, Cutout		Appelez-nous	-
25	137567001		Bracket, Mounting, Main Cntl Box				$ 40.97
26	5304533199		Main Board, Assembly, W/housing, & Harness   (Replaces: 5304521375)			Immediately	$ 358.25
28	137560425		Panel, Backsheet   (Replaces: 137560413)			Immediately	$ 261.70
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
30	137610600		Vane, Drum, Straight			Immediately	$ 82.69
31	5304505408		Cord, Power, 30amp 125, 250v, 4 Wire				$ 216.24
35	5304523155		Kit, Drum Roller, W/hardware			Immediately	$ 86.65
36	5304523154		Spacer, Roller Wheel			Immediately	$ 29.73
37	137553500		Cover, Exhaust Tube				$ 52.95
38	5304523151		Shaft, Roller, Shoulder Bolt			Immediately	$ 23.46
40	5304523152		Roller Wheel, Assembly, W/bearing			Immediately	$ 33.68
41	5304523153		Nut, Lock			Immediately	$ 12.16
44	134158001		Leveling Leg, Screw			Immediately	$ 27.80
45	5304515047		Bulkhead, Panel, Rear				$ 211.22
50	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
51	5304508988		Install Kit, Steam Dryer, Optional, Accessory   (Replaces: 5304495002)				$ 41.99
52	137573900		Screw, Comb Pan Hd, 1/4-14x.375		Appelez-nous	-
61	137544800		Valve, Mist Lowprofile			Immediately	$ 87.16
65	137017200		Grommet, Misting Tube				$ 3.94
66	5304529773		Nut, Nozzle   (Replaces: 137017300)				$ 85.89
68	5304529773		Nozzle Assembly, Mist System, W/tubing-nut   (Replaces: 5304521480)				$ 85.89
27B	134690203		Base, Dryer				$ 303.98
27L	134712697		Panel, Left Side, Titanium			Immediately	$ 263.36
27R	134712797		Panel, Right Side, Titanium			Immediately	$ 284.56
28A	137029801		Bracket, Reinforcement, Backsheet				$ 36.95
30A	5304531775		Vane, Drum, Mixing   (Replaces: 137610500)				$ 22.49
NI	137240501		Brace, Side Panel		Appelez-nous	-
NIA	5304521235		Harness, Wiring, Main				$ 248.42
NIA	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
NIA	5304506746		Shield, Mist Valve				$ 48.20
NIA	5304521493		Screw, Pn Hd, #10-16 X .375, 7.85mm		Appelez-nous	-
NIA	131205500		Screw, 1/4-14 X 0.625				$ 14.96
NIA	5304500486		Seal, Felt, Red Stitches, Drum				$ 51.98
NIB	5308027429		Adhesive, High Temp			Immediately	$ 66.94
NIB	137150200		Terminal Block Kit, Main				$ 35.44
NIB	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 14.96
NIC	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
