SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum

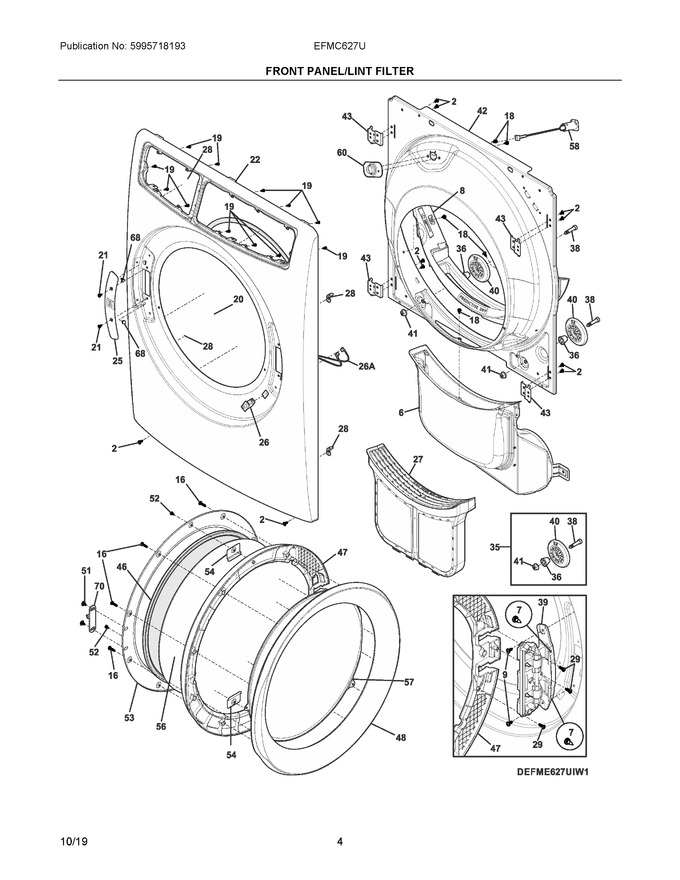

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
6	5304521401		Duct Assembly, Air, W/foam Top Seal			Immediately	$ 165.47
7	137285100		Screw, Pan Head, #8-18x.750				$ 19.48
8	5304513584		Grill Assembly, Lint, W/moisture Sens			Immediately	$ 169.31
9	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 18.26
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 12.60
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
20	5304505111		Gasket, Foam, Front Panel				$ 91.01
21	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
22	5304515428		Panel, Dryer Front, Titanium				$ 324.51
25	5304513568		Latch Assembly, Door, W/cover			Immediately	$ 31.59
26	134813664		Switch, Door, Grey			Immediately	$ 56.05
27	STOP MORE INFO RE		Filter Assembly, Lint, Clamshell   (Replaces: 5304513574)		Appelez-nous	-
28	137034500		Clip, Mounting, Cabinet Front				$ 48.04
29	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
35	5304523155		Kit, Drum Roller, W/hardware			Immediately	$ 86.65
36	5304523154		Spacer, Roller Wheel			Immediately	$ 29.73
38	5304523151		Shaft, Roller, Shoulder Bolt			Immediately	$ 23.46
39	5304505133		Hinge Assembly, Nest				$ 201.88
40	5304523152		Roller Wheel, Assembly, W/bearing			Immediately	$ 33.68
41	5304523153		Nut, Lock			Immediately	$ 12.16
42	5304505122		Bulkhead, Front				$ 253.56
43	5304505118		Bracket, Bulkhead, (4)				$ 16.07
46	5304505010		Gasket, Door Seal, Inner			Immediately	$ 109.40
47	5304505115		Frame, Inner Door				$ 191.98
48	5304505388		Frame, Outer, Chromed, Door				$ 307.13
51	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 11.81
52	131243700		Screw, Ph, 8-18ab X 0.375   (Replaces: 134529600)				$ 3.73
53	5304504995		Inner Door, Ring, Metal				$ 225.72
54	5304505012		Clamp, Door Glass, (2)			Immediately	$ 20.88
56	5304504999		Glass, Dryer Door, Black			Immediately	$ 185.66
57	5304505119		Shield, Heat, Door			Immediately	$ 130.94
58	5304521399		Lamp Assembly, Drum, W/harness				$ 108.98
60	5304521476		Bracket, Support, Drum Lamp				$ 20.88
68	134742002		Plug, Hinge Hole, Grey				$ 17.33
70	5304536127		Striker, Latch, Black   (Replaces: 5304505013)			Immediately	$ 20.56
26A	5304505258		Harness, Wiring, Door Switch				$ 49.32
NIA	5308027429		Adhesive, High Temp			Immediately	$ 66.94
NIA	5304513601		Screw, Grill Assembly, (2)				$ 14.46

    View Diagram in Separate Window       Print Part List
