Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233380 Assembly, Fan   (Replaces: W10769486) In-Stock Immediately $ 303.77

2 W10370680 Fitting, Drain Special Order $ 36.03

3 W11235099 Cover, Led Side   (Replaces: W10816886) Appelez-nous -
4 W11233381 Assembly, Led Strip (left Hand)   (Replaces: W10826246) Special Order $ 215.97

5 W11245087 Evaporator   (Replaces: W10917070) Special Order $ 360.31

6 W10225833 Grommet, Motor Special Order $ 39.70

7 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 6.95

8 W11307199 Cover, Led Top   (Replaces: W10816889) Appelez-nous -
9 W11307200 Strip, Top Led   (Replaces: W10826247) Appelez-nous -
10 W11233384 Assemby, Light Strip   (Replaces: W10914639) In-Stock Immediately $ 196.09

11 W11235114 Assembly, Air Tower Gasket (includes Air Tower)   (Replaces: W11176554) Special Order $ 93.27

12 W11235115 Assembly, Duct Damper (includes Heater)   (Replaces: W10872906) In-Stock Immediately $ 209.18

13 W11036131 Assembly, Air Tower Bracket (includes Rubber Rivets, Washers And Screws) (upper) Appelez-nous -
14 W11379157 Wall, False   (Replaces: W11305419) Appelez-nous -
15 W11235116 Duct, Deli   (Replaces: W10816934) Special Order $ 98.77

16 W11235118 Gasket, Deli Duct   (Replaces: W10916552) Appelez-nous -
17 W11307202 Assembly, Duct   (Replaces: W10815187) Appelez-nous -
18 W11235124 Harness, Damper   (Replaces: W10890824) Appelez-nous -
19 W11763850 Assembly, User Interface   (Replaces: W10826263) Special Order $ 693.44

20 W11307250 Grille, Air Return   (Replaces: W10847990) Appelez-nous -
21 N/P Liner (not A Serviceable Part) Appelez-nous -
22 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.86

23 W11305426 Assembly, Air Tower Panel Appelez-nous -
24 W11234552 Light, Led   (Replaces: W10903460) Appelez-nous -
25 W11257222 Screw   (Replaces: W11224718) Appelez-nous -
26 W11234553 Assembly, Icemaker Wire (includes Thermistor)   (Replaces: W10909591) Special Order $ 137.18

27 W11646196 Assembly, Icemaker   (Replaces: W10826573) In-Stock Immediately $ 229.16

28 W11234555 Cover, Icemaker (black)   (Replaces: W10880333) Special Order $ 22.67

29 W11379196 Ladder, Shelf (includes Screw Guide) (left Hand)   (Replaces: W11305422) Appelez-nous -
30 W11234826 Thermistor   (Replaces: W11084854) In-Stock Immediately $ 120.37

31 W11235125 Cover, Thermistor   (Replaces: W10912104) Special Order $ 102.95

32 W11234828 Screw (black)   (Replaces: W11288606) Appelez-nous -
33 W11245154 Heater, Defrost   (Replaces: W10826529) In-Stock Immediately $ 144.76

34 W11515313 Assembly, Fill Tube (includes Heater)   (Replaces: W11182410) In-Stock Immediately $ 286.60

35 W11553819 Insulation, Sound Deadening   (Replaces: 2169104) In-Stock Immediately $ 14.07

36 W11299623 Cover, Evaporator Panel U Shape   (Replaces: W10895218) Appelez-nous -
37 W11299413 Gasket, Evaporator Panel   (Replaces: W10895214) Appelez-nous -
38 W11299415 Assembly, Evaporator Cover (includes Insulation)   (Replaces: W10876958) Appelez-nous -
39 W11299416 Cover, Evaporator Insulation   (Replaces: W10780861) Appelez-nous -
40 W11299417 Block, Evaporator Bypass (left Hand)   (Replaces: W11216532) Appelez-nous -
41 W11302036 Cover, Manifold   (Replaces: W10816944) Appelez-nous -
42 W11302037 Crossbar, Control (upper)   (Replaces: W10816922) Appelez-nous -
43 W10602825 Assembly, Fuse Jumper Wire Special Order $ 43.00

44 W11299624 Harness, Evaporator (includes Thermistor)   (Replaces: W10810633) In-Stock Immediately $ 143.43

13A W11036132 Assembly, Air Tower Bracket (includes Rubber Rivets, Washers And Screws) (lower) Appelez-nous -
29A W11379201 Ladder, Shelf (includes Screw Guide) (right Hand)   (Replaces: W11305424) Appelez-nous -
40A W11299418 Block, Evaporator Bypass (right Hand)   (Replaces: W11216529) Appelez-nous -
42A W11302038 Crossbar, Control (lower)   (Replaces: W10887667) Appelez-nous -
4A W11233382 Assembly, Led Strip (right Hand)   (Replaces: W10901633) Special Order $ 286.93

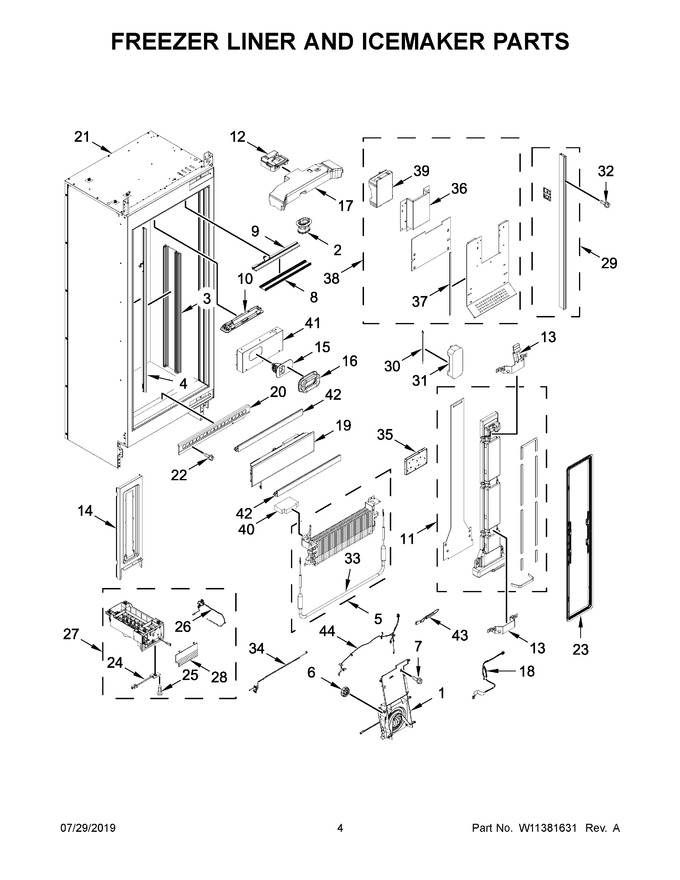

    View Diagram in Separate Window     Print Icon   Print Part List
