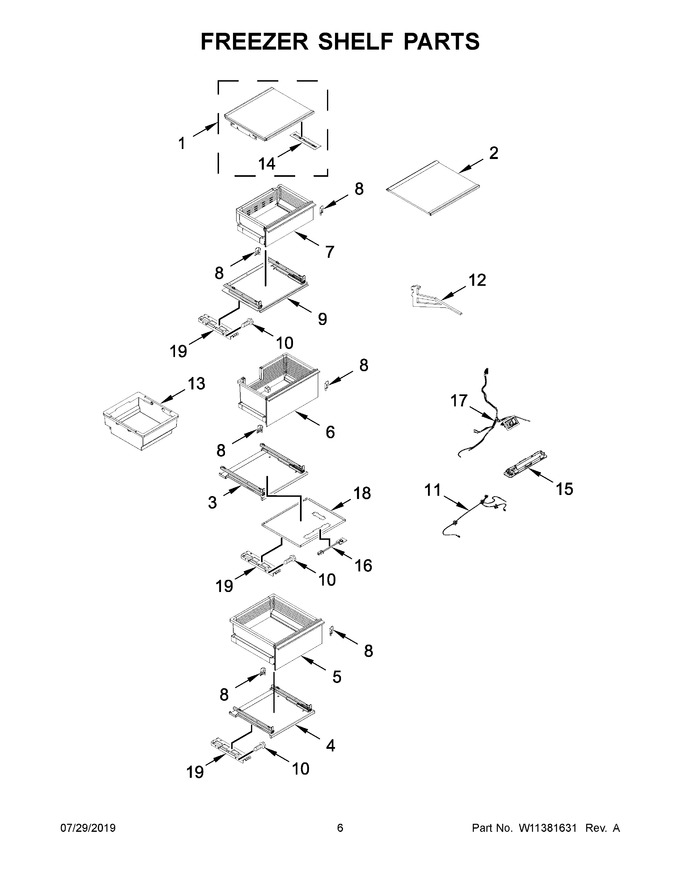

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11307252		Assembly, Deli Shelf (includes Thermistor)   (Replaces: W10824593)		Appelez-nous	-
2	W11307256		Assembly, Shelf   (Replaces: W11032681)				$ 310.78
3	W11306840		Assembly, Upper Crisper Slide Support   (Replaces: W10824119)		Appelez-nous	-
4	W11306841		Assembly, Lower Crisper Slide Support   (Replaces: W10821600)		Appelez-nous	-
5	W11307275		Assembly, Crisper   (Replaces: W10816844)		Appelez-nous	-
6	W11307277		Assembly, Ice Crisper   (Replaces: W10816832)		Appelez-nous	-
7	W11247584		Assembly, Deli   (Replaces: W10816763)		Appelez-nous	-
8	W11235126		Clip, Retainer (left Hand)   (Replaces: W10856559)		Appelez-nous	-
9	W11247585		Assembly, Deli Slide Support   (Replaces: W10824232)		Appelez-nous	-
10	W11247538		Screw   (Replaces: W10882791)			Immediately	$ 14.75
11	W11247586		Harness, Crisper Led   (Replaces: W10909589)		Appelez-nous	-
12	W11305532		Sidearm, Shelf				$ 46.20
13	W11234515		Assembly, Ice Bin   (Replaces: W10875428)				$ 311.27
14	W11265008		Thermistor (includes Cover)			Immediately	$ 129.80
15	W11233384		Assemby, Light Strip   (Replaces: W10914639)			Immediately	$ 205.89
16	W11234552		Light, Led   (Replaces: W10903460)		Appelez-nous	-
17	W11299625		Harness, Mullion   (Replaces: W11238953)				$ 148.11
18	W11299626		Plate, Crisper Led Support   (Replaces: W10902247)		Appelez-nous	-
19	W11302039		Bracket, Support   (Replaces: W11045476)		Appelez-nous	-
8A	W11235128		Clip, Retainer (right Hand)   (Replaces: W10856558)		Appelez-nous	-
