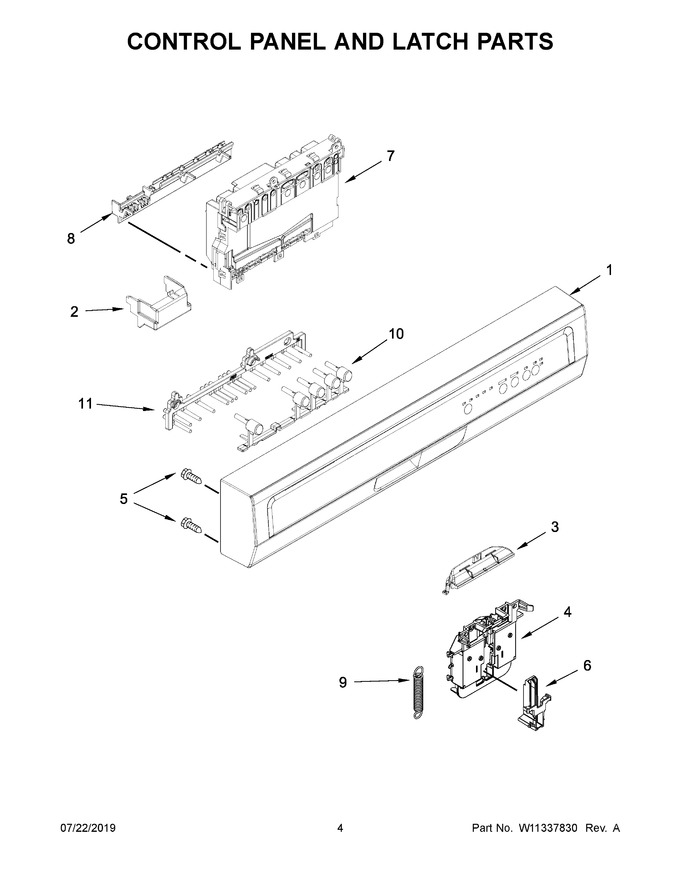

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11090954		Console Assembly (includes Insert) (black)   (Replaces: W11339796)		Appelez-nous	-
2	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 236.98
3	W11684608		Handle, Latch (black)   (Replaces: W10716685)				$ 8.59
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
5	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
6	WP8524471		Actuator, Latch   (Replaces: 8524471)			Immediately	$ 101.28
7	W11367637		Control, Electronic   (Replaces: W11339511)		Appelez-nous	-
8	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 236.98
9	W10678341		Spring, Latch				$ 19.59
10	W10854044		Button Tree   (Replaces: W10350294)				$ 19.58
11	W10913666		Light Pipe   (Replaces: W10350295)				$ 13.70
1A	W11090955		Console Assembly (includes Insert) (white)   (Replaces: W11339797)		Appelez-nous	-
3A	W10716686		Handle, Latch (white)				$ 31.99
