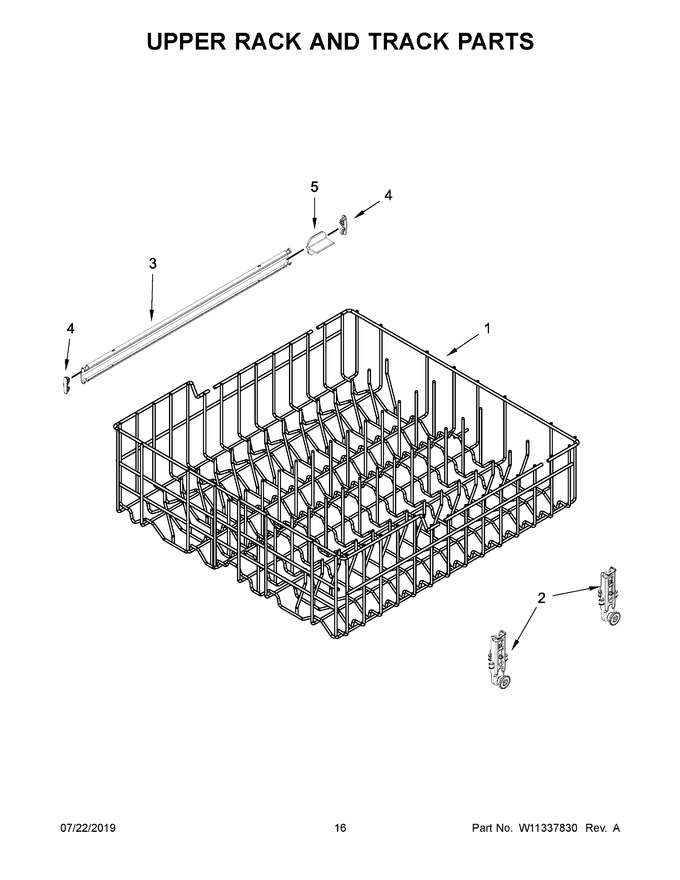

09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11752368		Dishrack, Upper   (Replaces: W10826745)				$ 274.61
2	W10888592		Mount, Wheel Assembly   (Replaces: W10845760)			Immediately	$ 54.85
3	WP3385089		Track, Dishrack   (Replaces: 3385089)			Immediately	$ 80.00
4	WP8565925		Stop, Track (non-removable)   (Replaces: 8565925)			Immediately	$ 6.87
5	WPW10306228		Track, Spacer   (Replaces: W10306228)				$ 8.07
