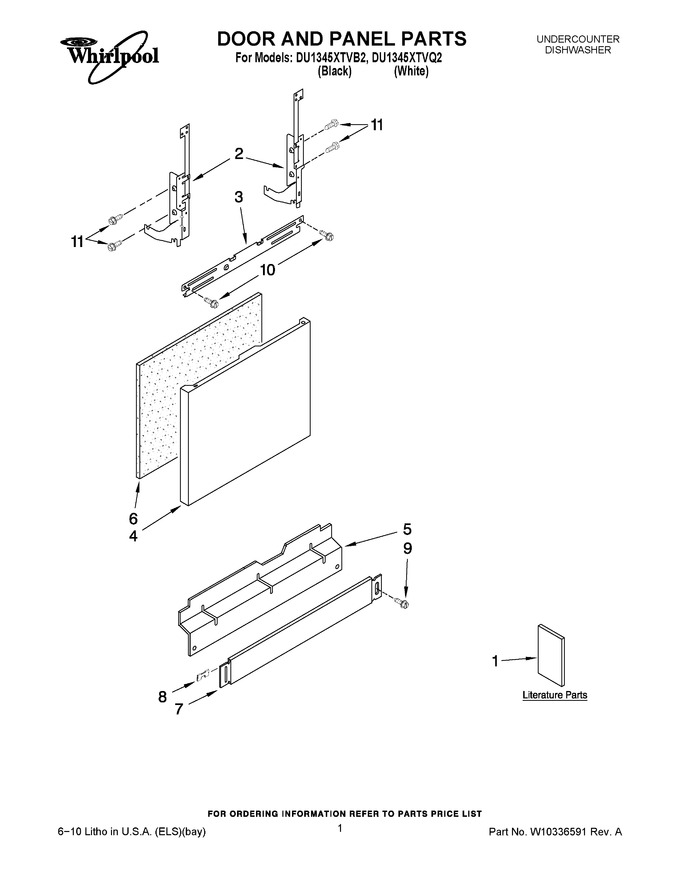

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142800 | Tech Sheet (english/french) |
|
- | |||||
| 1 | W10282553 | Instructions, Installation |
|
- | |||||
| 1 | W10300249 | Energy Guide |
|
- | |||||
| 1 | W10130986 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10133161 | Guide, Use & Care (spanish) |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 66.52 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 78.37 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10301571 | Panel Front (black) (Replaces: W10274845) |
|
$ 357.77 | |||||
| 4 | W10428852 | Panel Front (white) (Replaces: W10274846) |
|
$ 346.98 | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 38.79 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: W10195778) |
|
$ 162.80 | |||||
| 6 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 91.65 | |||||
| 7 | W10871196 | Toe Panel (black) (Replaces: 8573286) |
|
$ 165.75 | |||||
| 7 | WP8573287 | Toe Panel (white) (Replaces: 8573287) |
|
$ 165.12 | |||||
| 8 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 10.68 | |||||
| 9 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 7.75 | ||||
| 9 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 7.53 | |||||
| 10 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 11 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 |
