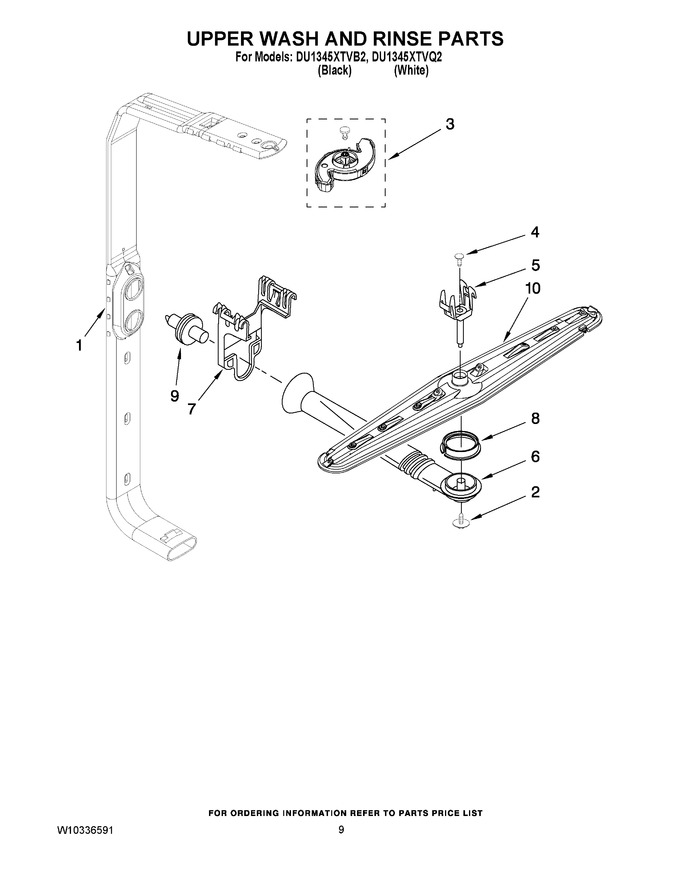

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10077863 | Feed Tube Assembly (also Includes Items 3 & 9) (Replaces: 8558964) |
|
Immediately | $ 187.94 | ||||
| 2 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 3 | 8193983 | Spinner, 3rd Level Wash (Replaces: 8557720) |
|
Immediately | $ 25.27 | ||||
| 4 | WP3400919 | Cover, Screw (Replaces: 3400919) |
|
$ 11.20 | |||||
| 5 | WP8268321 | Mount (Replaces: 8268321) |
|
$ 105.45 | |||||
| 6 | WPW10258150 | Manifold (Replaces: 8268327) |
|
$ 101.12 | |||||
| 7 | 8268325 | Holder, Feed Tube |
|
$ 5.84 | |||||
| 8 | WP8268433 | Seal, Sprayarm (Replaces: 8268433) |
|
Immediately | $ 11.77 | ||||
| 9 | WPW10082831 | Probe (Replaces: 8268328) |
|
Immediately | $ 48.24 | ||||
| 10 | WP8269024 | Sprayarm (Replaces: 8269024) |
|
Immediately | $ 82.14 |
