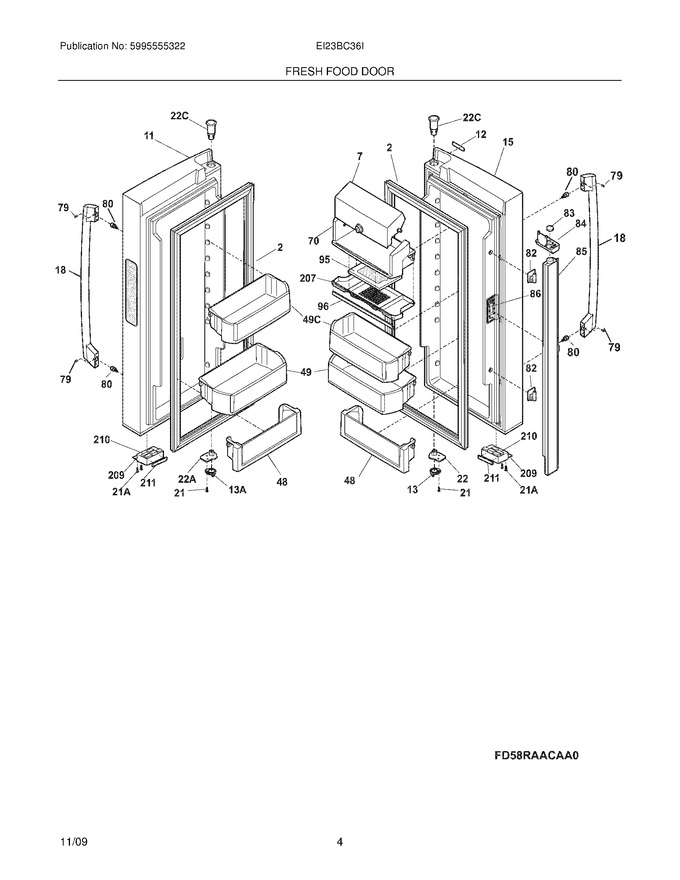

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	241895805		Door-dairy   (Replaces: 241804701)				$ 115.76
11	241988021		Door-refr,black		Appelez-nous	-
12	241873302		Nameplate,black				$ 10.21
13	241868401		Door Stop,refrig Rh ,plated				$ 20.48
15	241988020		Door-refr,black ,rh		Appelez-nous	-
18	241881321		Handle-refr Door,black ,(2)		Appelez-nous	-
21	242017501		Screw,10-32 X 0.750				$ 17.33
22	5303918453		Cam,upper Hinge ,rh   (Replaces: 241869501)				$ 55.13
48	241804303		Bin-door,can   (Replaces: 241804301)				$ 103.75
49	241804006		Bin-door,gallon   (Replaces: 241804002)				$ 122.90
70	241895805		Compartment-dairy,removable   (Replaces: 241804602)				$ 115.76
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 27.80
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
82	241779401		Hinge-mullion,upper/lower ,flipper			Immediately	$ 24.43
83	241812201		Magnet,door				$ 73.24
84	5303918644		Guide-mullion,flipper   (Replaces: 241779701)				$ 46.04
85	241778808		Flipper Mullion Assembly   (Replaces: 241778801)			Immediately	$ 350.44
86	241779802		Hinge-mullion,center ,flipper   (Replaces: 241779801)			Immediately	$ 45.83
95	242061001		Filter-air		Appelez-nous	-
96	242048001		Trim-door Air Filter,w/graphics				$ 48.88
207	242047901		Housing-air Filter				$ 89.32
209	242291002		Housing-magnet,black   (Replaces: 242021002)				$ 21.26
210	241779101		Magnet,door   (Replaces: 241779103)			Immediately	$ 34.65
211	241979601		Bumper,rubber				$ 25.20
13A	241868402		Door Stop,refr Lh ,plated				$ 20.48
21A	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 17.69
22A	5303918453		Cam,upper Hinge ,lh   (Replaces: 241869502)				$ 55.13
22C	241760401		Bearing,hinge ,top			Immediately	$ 21.26
49C	241896103		Bin-door,1/2 Gallon   (Replaces: 241896101)				$ 108.52
F2	241778315		Gasket-refr Door, Grey, Magnetic   (Replaces: 241778303)			Immediately	$ 99.87
FNI	242045401		Harness-wiring,door				$ 51.50
FNI	240451503		Screw   (Replaces: 242064001)				$ 4.21
NI	241601002		Wrench,allen		Appelez-nous	-
NI	241836401		Latch-door				$ 20.48
NI	241836301		Knob-dairy Door				$ 43.31
NI	5304453707		Screw   (Replaces: 241641501)			Immediately	$ 17.69
NI	241788402		Harness-wiring,flipper Mullion		Appelez-nous	-
NI	242015001		Screw,no.10 8-19 X 1/2			Immediately	$ 18.11
NI	241891401		Cover-light,led				$ 13.19
NI	241995401		Divider-dairy Compt,70x				$ 21.26

    View Diagram in Separate Window       Print Part List
