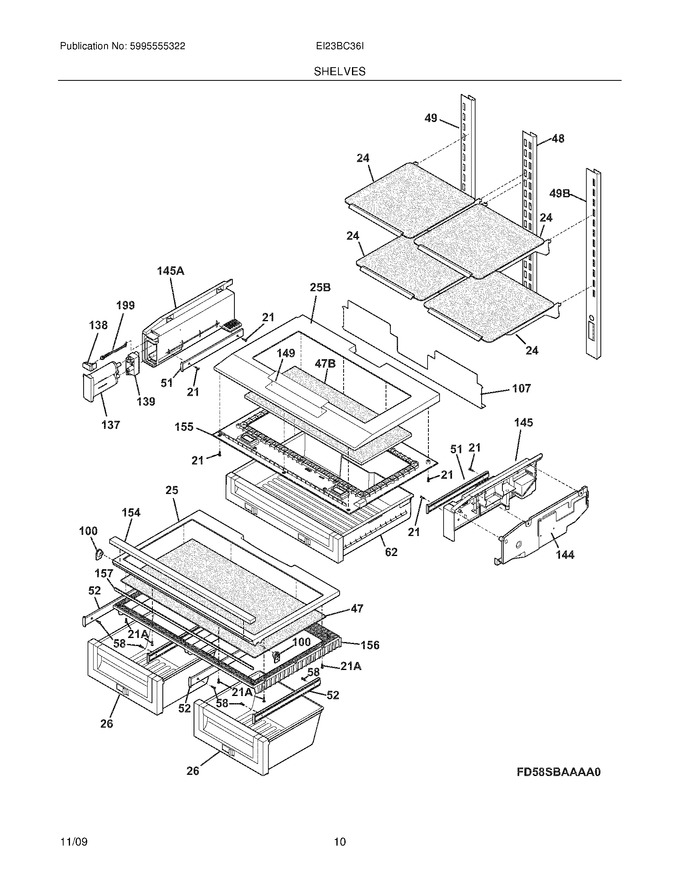

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Drawer,baskets
05 - Refrigerator Doors
07 - Cabinet
09 - Shelves
11 - System
13 - Controls
15 - Icemaker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 54.48 | ||||
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 20.48 | ||||
| 9 | 241518301 | Bushing,motor Mounting |
|
$ 74.03 | |||||
| 10 | 242058501 | Cover-air Duct |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 50.56 | |||||
| 12 | 242073901 | Foam-air Supply |
|
$ 66.31 | |||||
| 13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 171.27 | ||||
| 14 | 240505801 | Switch-light/lamp |
|
$ 74.03 | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 241552801) |
|
Immediately | $ 81.18 | ||||
| 16 | 241860501 | Cover-damper |
|
- | |||||
| 17 | 241928201 | Gasket-air Duct |
|
$ 19.69 | |||||
| 18 | 241928101 | Duct-air |
|
$ 8.23 | |||||
| 19 | 241871901 | Support-eps Damper |
|
$ 20.48 | |||||
| 20 | 241922901 | Cover-air Duct,rear |
|
$ 133.29 | |||||
| 21 | 241953902 | Screw,no.8 - 18 X .380 |
|
Immediately | $ 19.01 | ||||
| 22 | 240597220 | Sensor (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 25 | 241949501 | Clip,air Vent |
|
- | |||||
| 28 | 5304499445 | Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces: 240335502) |
|
Immediately | $ 34.81 | ||||
| 30 | 241778701 | Bracket-anti Tip |
|
$ 29.49 | |||||
| 34 | 241868301 | Washer |
|
$ 34.65 | |||||
| 10A | 241860402 | Cover-evap Coil,lower |
|
Immediately | $ 145.46 | ||||
| 16A | 240590403 | Socket-light,top & Mid (Replaces: 240590401) |
|
$ 29.49 | |||||
| 1A | 242052101 | Duct-air |
|
$ 57.17 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 21D | 241548003 | Screw,10-32 X 3/8 |
|
$ 3.37 | |||||
| F10A | 241860104 | Gasket-coil Cover |
|
Immediately | $ 33.08 | ||||
| F10A | 241860105 | Gasket-coil Cover |
|
Immediately | $ 19.86 | ||||
| F16A | 242045502 | Harness-wiring |
|
- | |||||
| F16A | 241969202 | Harness-wiring,top Light |
|
$ 103.16 | |||||
| F16B | 241510802 | Harness-wiring,frz Light |
|
$ 46.46 | |||||
| F16B | 241622802 | Socket-light,frz Light |
|
$ 73.25 | |||||
| NI | 242006901 | Duct-air,freezer |
|
- | |||||
| NI | 241953904 | Screw,no.8-18 |
|
$ 11.81 | |||||
| NI | 241859801 | Cover-eps,damper |
|
$ 8.93 |
