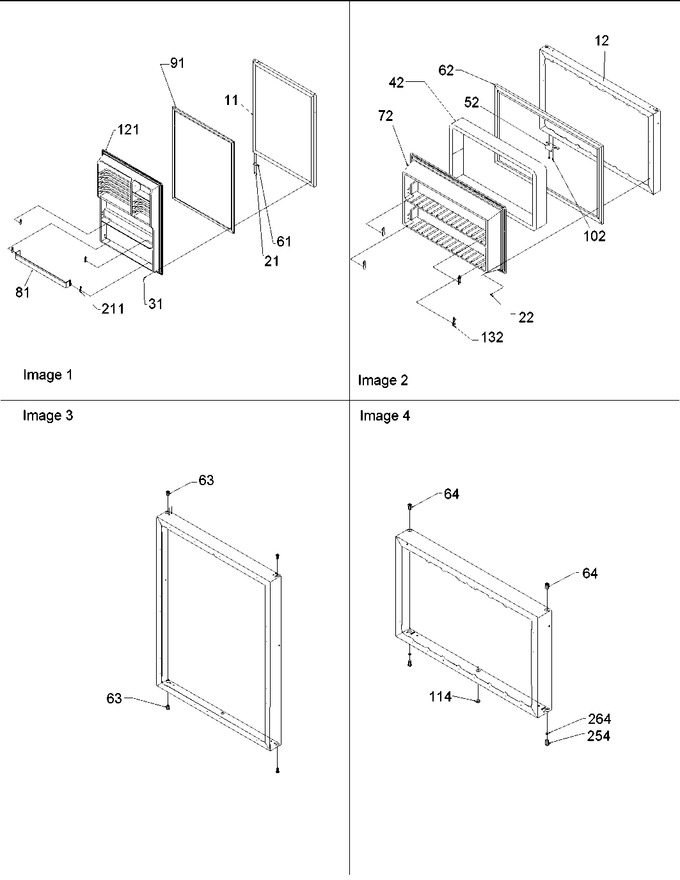

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12511103C		Assy,ref Dr Foam(bisque)		Appelez-nous	-
12	12511203C		Assy,fz Dr Foam(bisque)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
42	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
52	67003781		Stop, Door (bsq)   (Replaces: 12051016)				$ 83.12
61	67003781		Stop, Door (bsq)   (Replaces: 10447110)				$ 83.12
62	12550112		Gasket, Frz Dr (wht)		Appelez-nous	-
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	10415501Q		Liner, Frz Dr		Appelez-nous	-
81	10419020		Retainer,ref/fz Dr		Appelez-nous	-
91	WP12550111Q		Gasket, Ref Dr (wht)   (Replaces: 12550111)				$ 178.50
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
114	M0310344		Plug, Button (bsq)		Appelez-nous	-
121	10440804		Liner, Ref Door		Appelez-nous	-
132	10202001		Clip, Retainer		Appelez-nous	-
211	10202001		Clip, Retainer		Appelez-nous	-
254	12028601		Bushing, Door (wht)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
