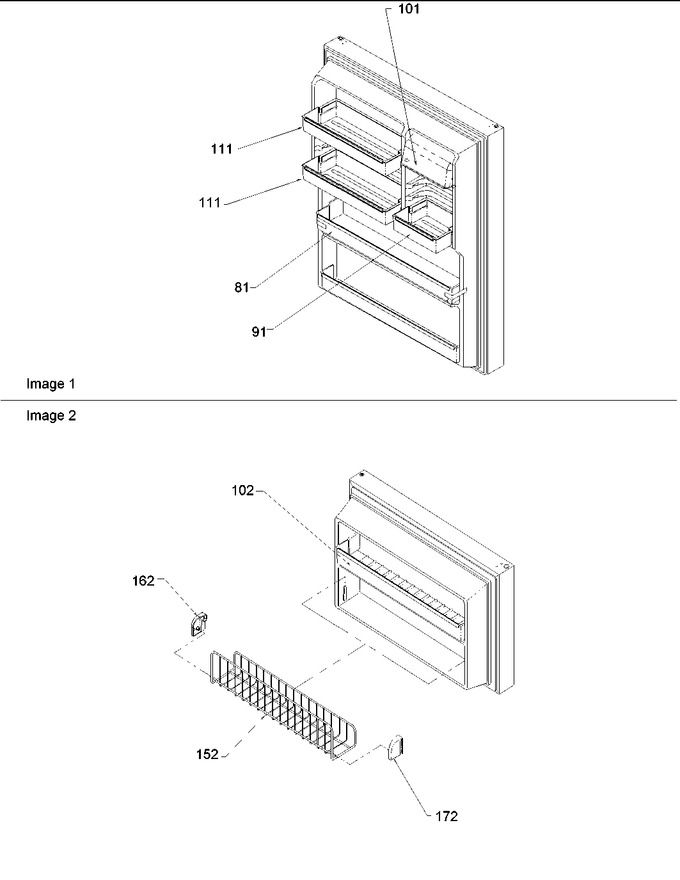

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
81	10183126		Retainer,ref Door		Appelez-nous	-
91	10502916		Bucket, Ref Door		Appelez-nous	-
101	10423418		Door, Dairy		Appelez-nous	-
102	10419020		Retainer,ref/fz Dr		Appelez-nous	-
111	10416916		Shelf, Ref Door		Appelez-nous	-
152	12503501		Basket, Tilt Out		Appelez-nous	-
162	12503401		End Cap, Tilt Basket		Appelez-nous	-
172	12503402		End Cap, Tilt Basket		Appelez-nous	-
NI	12542101		Template, Mounting		Appelez-nous	-
NI	Y12528501		Nameplate (amana Plus)			Immediately	$ 59.75
