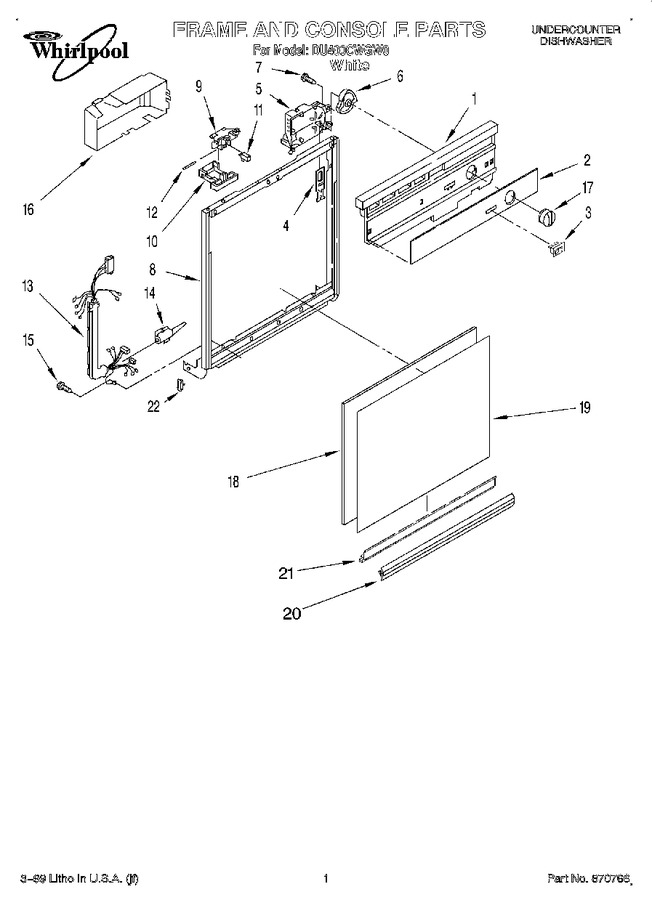

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8051464		Console (includes Item 2)		Appelez-nous	-
2	8051320		Insert, Console		Appelez-nous	-
3	8051729		Switch, Rocker				$ 77.32
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 62.31
5	3373590		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.11
7	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 7.75
8	3374711		Door Frame (includes Item 21)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8051137		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 6.74
16	8051644		Cover, Timer		Appelez-nous	-
17	3375348		Knob, Timer				$ 64.33
18	3368979		Spacer, Corrugated				$ 38.99
19	3371716		+front Panel (white)				$ 49.13
20	3374010		Retainer, Panel				$ 40.68
21	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 10.49
