01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional

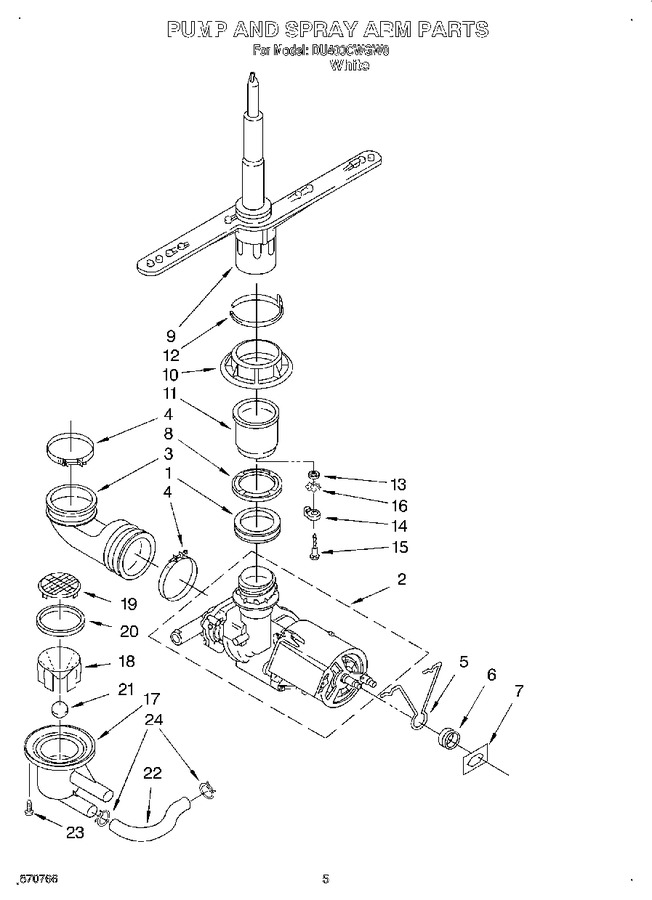

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369037		Grommet, Pump Seal				$ 28.33
2	3369015		Pump & Motor Assembly For Breakdown Of Pump Parts, Refer To Pump And Motor Parts Page		Appelez-nous	-
3	W11189178		Hose, Pump Inlet   (Replaces: 3369035)				$ 27.33
4	3369036		Clamp (2)		Appelez-nous	-
5	3369033		Support, Motor		Appelez-nous	-
6	3369032		Grommet, Motor Support		Appelez-nous	-
7	3370856		Push-nut, Motor Support				$ 5.58
8	3369038		Washer, Grommet				$ 12.83
9	3369010		Spray Arm, Assembly Lower		Appelez-nous	-
10	3369039		Nut, Pump Outlet		Appelez-nous	-
11	3371745		Support & Bearing Assembly (includes Items: 13, 14, 15 & 16)				$ 38.01
12	WP3369045		Seal, Split Ring   (Replaces: 3369045)				$ 10.93
13	3369044		Washer		Appelez-nous	-
14	3371746		Bearing				$ 13.51
15	3371744		Shoulder Screw		Appelez-nous	-
16	3371634		Washer, Curved				$ 5.33
17	3369175		Collector		Appelez-nous	-
18	3369176		Funnel				$ 5.65
19	3369326		Grate, Funnel				$ 5.65
20	WP3369177		Seal   (Replaces: 3369177)				$ 11.87
21	WP3369178		Ball, Check-valve   (Replaces: 3369178)				$ 11.01
22	3369179		Hose, Collector		Appelez-nous	-
23	3369181		Screw		Appelez-nous	-
24	371499		Hose, Clamp				$ 12.95
