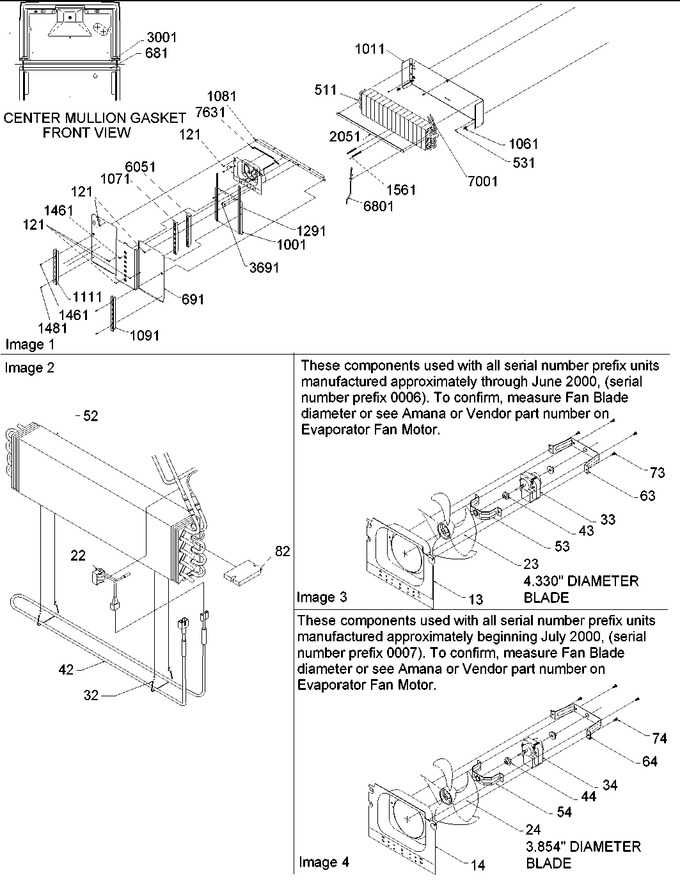

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 10422304 | Shroud, Evap. Fan |
|
- | |||||
| 14 | 10422306 | Shroud,evap Fan-e Ct |
|
- | |||||
| 22 | 10442410 | Thermostat |
|
$ 48.58 | |||||
| 23 | W10116797 | Assy, Fan-evap (Replaces: 10855401) |
|
Immediately | $ 8.56 | ||||
| 24 | WP2169142 | Fan, Evaporator (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 32 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 33 | WP10449501 | Motor-evap Fan (Replaces: 10449501) |
|
$ 240.54 | |||||
| 34 | WPW10189703 | Motor Evap Fan (Replaces: 10449506) |
|
Immediately | $ 70.17 | ||||
| 42 | 10991110 | Heater, Evaporator |
|
- | |||||
| 43 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 44 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 52 | R0170061 | Assy,low Side |
|
- | |||||
| 53 | 10492801 | Brkt, Up Evap. Fan |
|
$ 5.27 | |||||
| 54 | 10492801 | Brkt, Up Evap. Fan |
|
$ 5.27 | |||||
| 63 | 10492701 | Brkt, Lwr. Evap. Fan |
|
$ 5.27 | |||||
| 64 | 10492701 | Brkt, Lwr. Evap. Fan |
|
$ 5.27 | |||||
| 73 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 74 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 | ||||
| 82 | 10991002 | Block, R Evap. |
|
- | |||||
| 121 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 511 | 10428301 | Block, Evap. L. |
|
- | |||||
| 531 | 67006425 | Screw, Sm (Replaces: M0238642) |
|
Immediately | $ 7.30 | ||||
| 681 | 10685509 | Gasket, Sealing |
|
- | |||||
| 691 | 10432412 | Cover, Evap |
|
- | |||||
| 1001 | 10440712 | Cover, Evaporator |
|
- | |||||
| 1011 | 10427714 | Shield, Evap |
|
- | |||||
| 1061 | 10442301 | Clip, Evaporator |
|
- | |||||
| 1071 | 10439305 | Ladder, Center |
|
- | |||||
| 1081 | 10439704 | Supp-ctr Ladder |
|
- | |||||
| 1091 | 10439401 | Ladder R. Side Evap |
|
- | |||||
| 1111 | 10439402 | Ladder, L. Side Evap. |
|
- | |||||
| 1291 | A3030356 | Gasket |
|
- | |||||
| 1461 | M0230924 | Screw |
|
- | |||||
| 1481 | M0238921 | Screw, Sm |
|
- | |||||
| 1561 | 10481102 | Support, Frz Ladder |
|
- | |||||
| 2051 | A3189358 | Gasket, Foam |
|
- | |||||
| 3001 | B5759626 | Gasket, Sealing |
|
- | |||||
| 3691 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 6051 | 10584701 | Insert, Frz. Ladder |
|
- | |||||
| 6801 | 10586601 | Clip, Ht Transfer |
|
- | |||||
| 7001 | M0321210 | Tie, Elec |
|
- | |||||
| 7631 | A3030354 | Gasket |
|
- |
