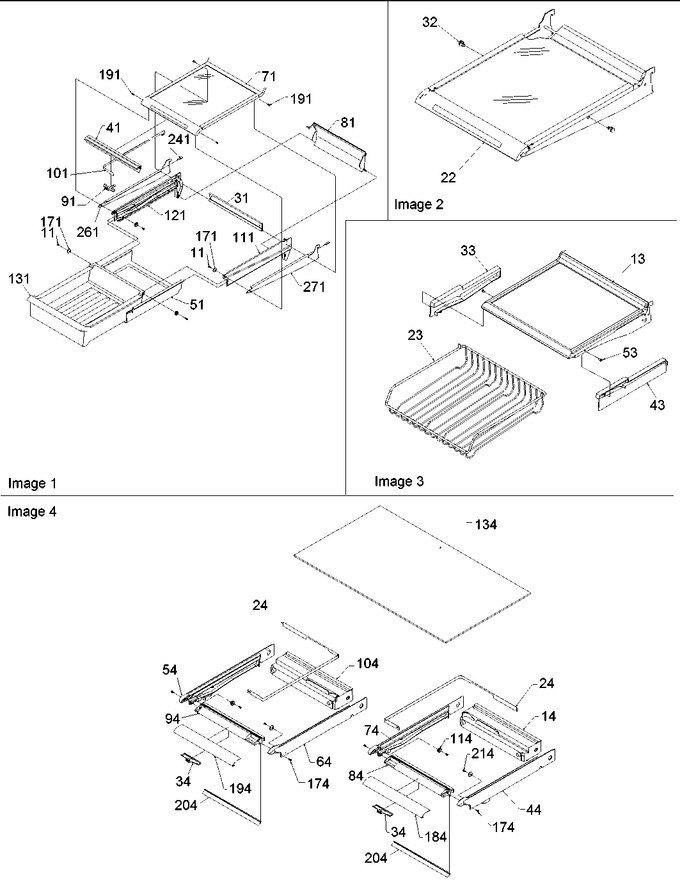

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
13	10895819		Shelf, Glide		Appelez-nous	-
14	10433803		Rail, Crisper Back		Appelez-nous	-
22	10895819		Shelf, Glide		Appelez-nous	-
23	12509901		Rack, Can		Appelez-nous	-
24	10467806		Band, Crisper Cont		Appelez-nous	-
31	10920204		Extr, Mk Rear		Appelez-nous	-
32	10875101		Stop, Shelf		Appelez-nous	-
33	12528201		Glide,left Can Rack		Appelez-nous	-
34	10797501		Slide, Crisper		Appelez-nous	-
41	10920304		Extr, Mk Frt		Appelez-nous	-
43	12528202		Glide,right Can Rack		Appelez-nous	-
44	10432703		Rail, Side Crisper		Appelez-nous	-
51	10629302		Sleeve, Mk		Appelez-nous	-
53	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
54	10432704		Rail, Side Crisper		Appelez-nous	-
64	10432805		Rail, Ctr. Crisper				$ 21.50
71	10895815		Shelf, Glide		Appelez-nous	-
74	10432806		Rail, Ctr. Crisper				$ 23.67
81	10445704		Scoop, Air		Appelez-nous	-
84	10687901		Rail, Crisper Fr (r)		Appelez-nous	-
91	10920401		Slide, Mk Control		Appelez-nous	-
94	10687902		Rail, Crisper Fr (l)		Appelez-nous	-
101	10920102		Band, Mk Control		Appelez-nous	-
104	10435603		Rail, Crisper Back		Appelez-nous	-
111	10880201		Glide, Mk R		Appelez-nous	-
114	10481001		Roller, Pan				$ 10.99
121	10897101		Glide, Mk L		Appelez-nous	-
131	10629203		Pan, Mk		Appelez-nous	-
134	Y10370063		Glass, Shelf		Appelez-nous	-
171	10481001		Roller, Pan				$ 10.99
174	67006692		Screw, Hi Lo   (Replaces: M0237932)				$ 10.79
184	10688083		Extr,r Crisp Front		Appelez-nous	-
191	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
194	10688082		Extr,l Crisp Front		Appelez-nous	-
204	10530206		Seal, Crisper		Appelez-nous	-
214	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
241	12016601		Clip-sta Shelf		Appelez-nous	-
261	10992407		Blank-side Rail		Appelez-nous	-
271	10992408		Blank-side Rail		Appelez-nous	-
