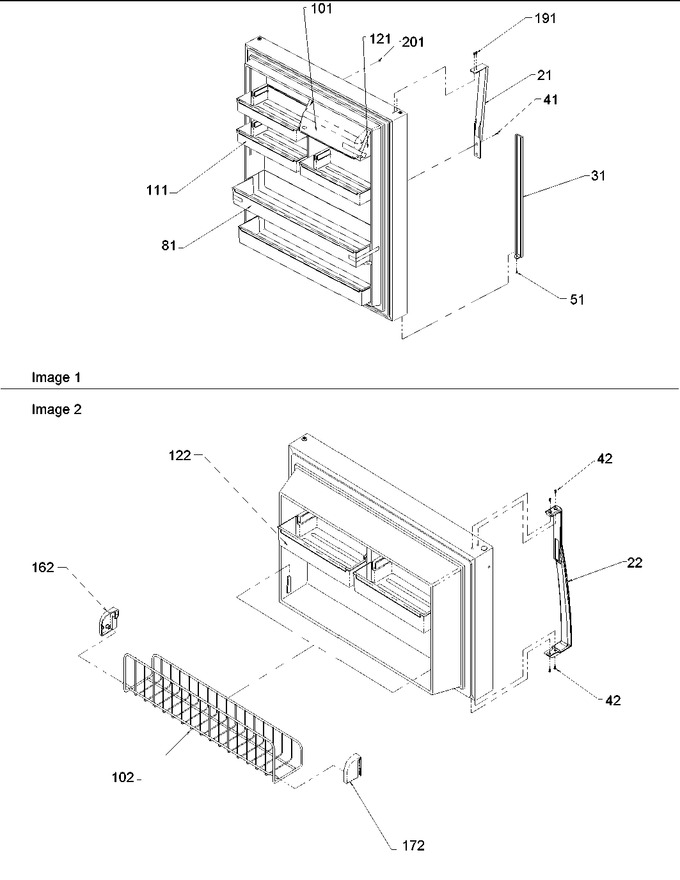

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | 12497501C | Handle,ref Dr(bisque) |
|
- | |||||
| 22 | 12497409C | Handle,fz Dr(bisque) |
|
- | |||||
| 31 | 12502201C | Trim,handle(bisque) |
|
- | |||||
| 41 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 42 | M0221744 | Screw-sm Shldr |
|
- | |||||
| 51 | M0221756 | Screw, Small |
|
- | |||||
| 81 | 10609806 | Retainer, Ref Dr |
|
- | |||||
| 101 | 12163302 | Door, Dairy |
|
- | |||||
| 102 | 12503503 | Basket, Tilt Out |
|
- | |||||
| 111 | 10420009 | Shelf,ref Dr(used On Ref & Frz |
|
- | |||||
| 121 | 12163202 | Shelf, Dairy |
|
- | |||||
| 122 | 10420009 | Shelf,ref Dr(used On Ref & Frz |
|
- | |||||
| 162 | 12503401 | End Cap, Tilt Basket |
|
- | |||||
| 172 | 12503402 | End Cap, Tilt Basket |
|
- | |||||
| 191 | M0221744 | Screw-sm Shldr |
|
- | |||||
| 201 | 12246604 | Plug, Handle Hole (bsq) |
|
- |
