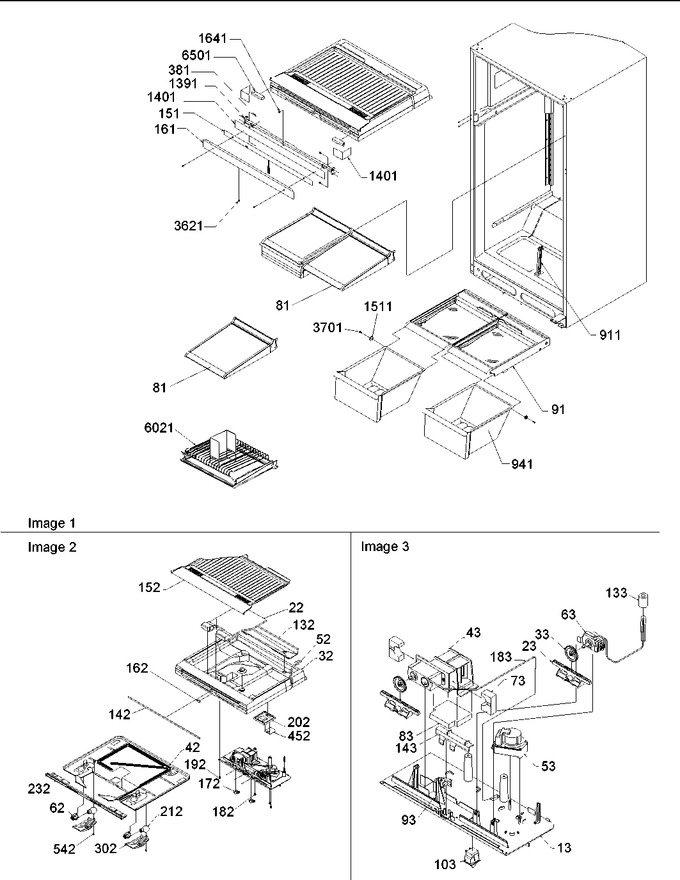

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 12035107 | Housing, Control |
|
- | |||||
| 22 | 10476402 | Insert, Drain Block |
|
- | |||||
| 23 | 10439601 | Rack, Control |
|
- | |||||
| 32 | 10996201 | Kit, Drain Blk/ Frz Floor |
|
- | |||||
| 33 | 10442601 | Pinion, Control |
|
- | |||||
| 42 | 12035218 | Ref Top- E Ct |
|
- | |||||
| 43 | R0161072 | Assy, Damper Control |
|
- | |||||
| 52 | 10573506 | Harness, Drain Block |
|
- | |||||
| 53 | R0168027 | Timer-defrost (Replaces: 10428601) |
|
Immediately | $ 159.86 | ||||
| 62 | D7714408 | Socket, Light |
|
$ 68.10 | |||||
| 63 | R9700005 | Assy, Frz Control |
|
- | |||||
| 73 | 10442801 | Insert,damper |
|
- | |||||
| 81 | 10926208Q | Assy,hlf Gls Shelf |
|
- | |||||
| 83 | 10442901 | Insulation, Damper |
|
- | |||||
| 91 | 10698559Q | Assy,crisper Frame |
|
- | |||||
| 93 | M0350201 | Switch, St |
|
- | |||||
| 103 | W11384469 | Switch, Light (Replaces: C3680308) |
|
Immediately | $ 39.09 | ||||
| 132 | 10671702 | Drip Tray |
|
- | |||||
| 133 | 10673603 | Insulation, Cap |
|
- | |||||
| 142 | 10450847 | Membrane,25 Breaker |
|
- | |||||
| 143 | 10565101 | Shield, Wire |
|
- | |||||
| 151 | 10543615 | Heater, Mullion |
|
- | |||||
| 152 | 10995902 | Bottom, Frz |
|
- | |||||
| 161 | 10433363WD | Mullion,center-w Ect |
|
- | |||||
| 162 | 10453001 | Cap, Switch |
|
- | |||||
| 172 | 10565401 | Knob, Control |
|
- | |||||
| 182 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 183 | A3012543 | Tube-plastic |
|
- | |||||
| 192 | M0224128 | Screw |
|
- | |||||
| 202 | 10995201 | Insert-mk Air Sply |
|
- | |||||
| 212 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 232 | 10673706 | Frame, 25 Breaker |
|
- | |||||
| 302 | 10508701 | Shield, Refrig. Light |
|
- | |||||
| 381 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 452 | 10594901 | Gasket, Mk Air Supply |
|
- | |||||
| 542 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 911 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 941 | 10629103 | Pan, Crisper |
|
- | |||||
| 1391 | 10433612 | Plate, Center Tap |
|
- | |||||
| 1401 | B0523584 | Insulation Per Ft. |
|
- | |||||
| 1511 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 1641 | M0253916 | Screw |
|
- | |||||
| 3621 | M0211520 | Screw - Sm |
|
- | |||||
| 3701 | 67006692 | Screw, Shoulder (Replaces: M0238105) |
|
$ 10.79 | |||||
| 6021 | 12224202Q | Assy, Can Rack |
|
- | |||||
| 6501 | 10772301 | Insulation |
|
- | |||||
| NI | 10573402 | Harness, Control |
|
- |
