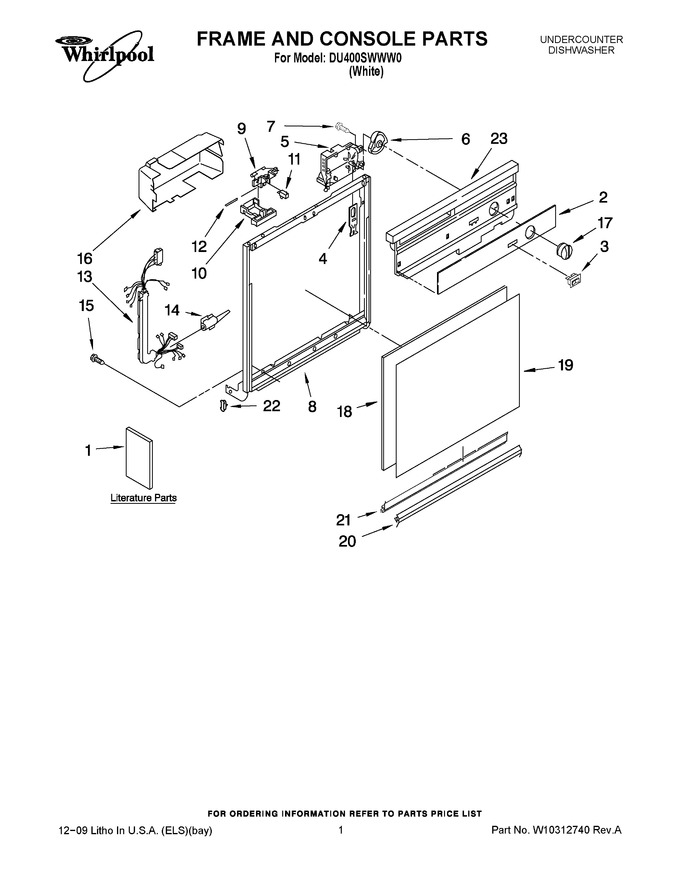

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677967 | Do-it Yourself Manual |
|
- | |||||
| 1 | 8535436 | Instructions, Installation |
|
- | |||||
| 1 | W10240234 | Energy Guide |
|
- | |||||
| 1 | W10130987 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10133162 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | 8051171 | Wiring Diagram |
|
- | |||||
| 2 | W10240216 | Insert, Console |
|
- | |||||
| 3 | 8051729 | Switch, Rocker |
|
$ 81.19 | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 65.43 | |||||
| 5 | WPW10199588 | Timer (Replaces: W10039490) |
|
$ 351.31 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.96 | |||||
| 7 | WP304231 | Screw, 8-18 X 1/2 (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 3374711 | Door Frame (includes Item 21) |
|
$ 158.94 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3369457 | Lever, Latch |
|
$ 5.84 | |||||
| 11 | 3369325 | Switch |
|
- | |||||
| 12 | 3368955 | Pin, Switch |
|
$ 7.75 | |||||
| 13 | 8573186 | Harness And Protector |
|
$ 162.29 | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | 8051644 | Cover, Timer |
|
- | |||||
| 17 | 8275308 | Knob, Timer |
|
$ 75.05 | |||||
| 18 | 3368979 | Spacer, Corrugated |
|
$ 38.99 | |||||
| 19 | 3371716 | +front Panel (white) |
|
$ 49.13 | |||||
| 20 | 3374010 | Retainer, Panel |
|
$ 40.68 | |||||
| 21 | WP3374716 | Channel, Retainer (also Order Item No.20) (Replaces: 3374716) |
|
$ 100.22 | |||||
| 22 | WP3373234 | Bearing, Spring (Replaces: 3373234) |
|
$ 11.01 | |||||
| 23 | W10240303 | Console (includes Item 2) |
|
- |
