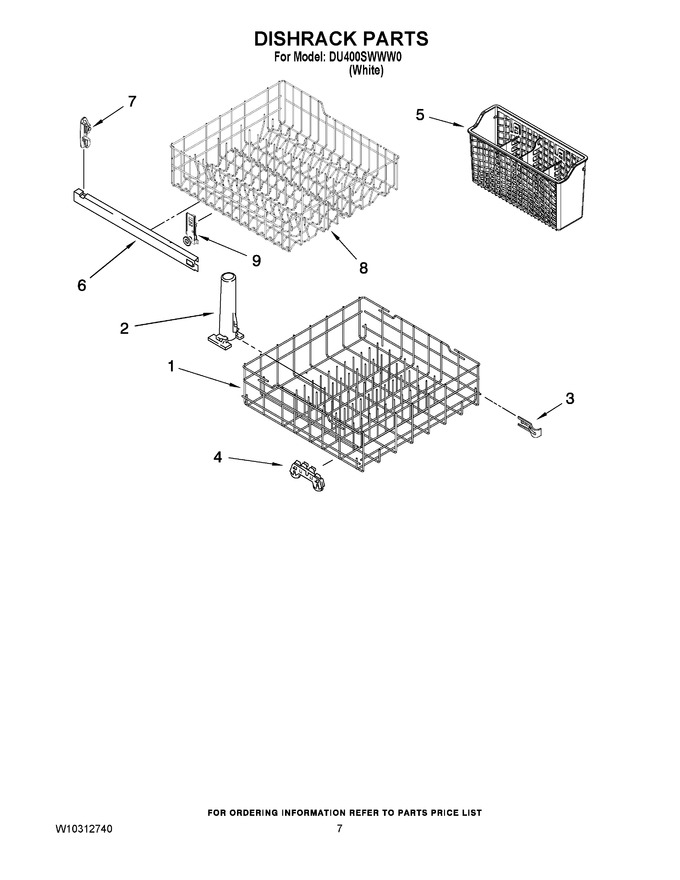

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10161215		Lower Dishrack   (Replaces: 8539225)				$ 198.12
2	WP8268825		Tower, Protector   (Replaces: 8268825)				$ 108.90
3	WP3385142		Bumper, Dishrack   (Replaces: 3385142)				$ 94.82
4	WP8268645		Wheel & Transport Assembly   (Replaces: 8268645)			Immediately	$ 62.31
5	WP8539066		Basket, Silverware   (Replaces: 8539066)				$ 106.52
6	WP3385089		Track, Dishrack   (Replaces: 3385089)			Immediately	$ 80.00
7	WP8565925		Stop Track   (Replaces: 8565920)			Immediately	$ 6.87
8	W11752368		Dishrack, Upper Assembly   (Replaces: W10164198)				$ 274.61
9	WPW10204131		Wheel & Axle Assembly   (Replaces: W10204114)			Immediately	$ 9.16
