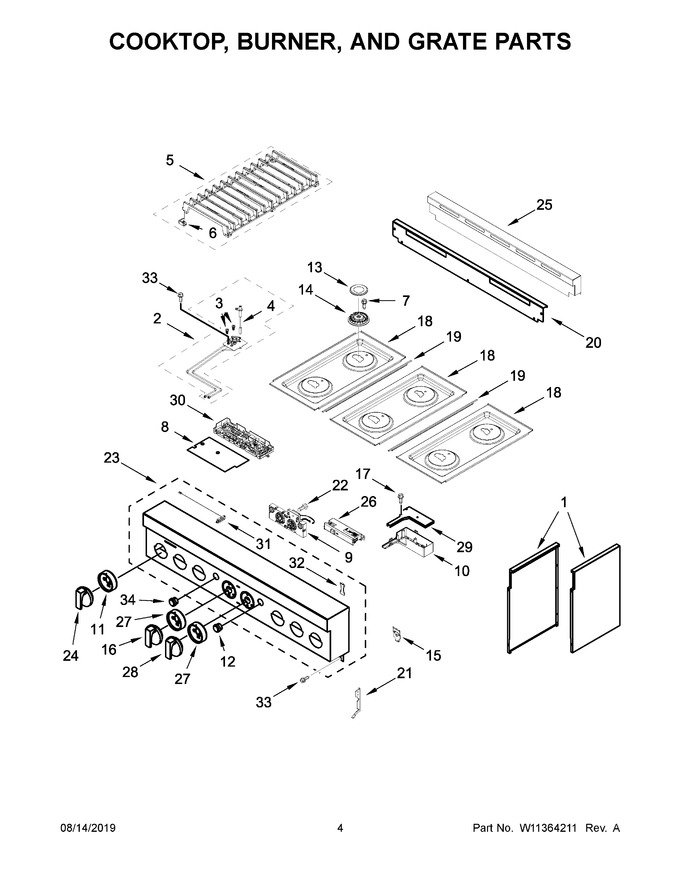

03 - Cooktop, Burner, And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333179		Panel, Cabinet Side (left)   (Replaces: W11106881)				$ 419.69
2	W11333305		Assembly, Orifice Holder (left Front)   (Replaces: W10892793)				$ 125.39
3	W11643164		Orifice, Main (17.4k) (left Front And Right Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (left Front, Left Rear, Right Front, Right Rear)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11516449		Assembly, Grate (black (left))   (Replaces: W11172289)				$ 265.06
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11356247		Interface, User   (Replaces: W11095713)				$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel, Cooktop (for 6 Cooktop Burners)   (Replaces: W11090284)				$ 106.87
12	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
13	W11319224		Cap, Burner (black (set Of 6))   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high) (all Except Center Rear)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11397970		Knob, Oven Mode (stainless)   (Replaces: W11317854)				$ 164.32
17	W10709795		Screw   (Replaces: 7101P624-60)				$ 13.79
18	W11316700		Panel, Cooktop (black (left))   (Replaces: W11038237)				$ 502.01
19	W10271524		Trim, T-strip (black)				$ 212.34
20	W10323250		Insert, Island Trim				$ 181.79
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
23	W11715959		Panel, Console   (Replaces: W11253775)				$ 1,069.60
24	W11317537		Knob, Burner (for 6 Cooktop Burners) (stainless)   (Replaces: W10887596)			Immediately	$ 155.66
25	W11476245		Trim, Island   (Replaces: W11183086)				$ 404.65
26	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
27	W11317892		Bezel, Oven (for 2 Oven Knobs) (stainless)   (Replaces: W11042375)				$ 110.74
28	W11317539		Knob, Oven Temperature (stainless)   (Replaces: W10891868)				$ 154.22
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11356248		Manager, Appliance (powermax)   (Replaces: W11100275)				$ 466.83
31	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
32	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 109.35
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
14A	W11319673		Spreader, Flame (low) (center Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11316701		Panel, Cooktop (black (center))   (Replaces: W11038241)				$ 502.01
18B	W11328008		Panel, Cooktop (black (right))   (Replaces: W11038254)				$ 475.25
1A	W11333303		Panel, Cabinet Side (right)   (Replaces: W11106880)				$ 421.41
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W11333306		Assembly, Orifice Holder (left Rear)   (Replaces: W10892494)			Immediately	$ 127.98
2B	W11334711		Assembly, Orifice Holder (center Front)   (Replaces: W10892501)				$ 118.15
2C	W11319740		Assembly, Orifice Holder (center Rear)   (Replaces: W10892810)				$ 122.67
2D	W11334712		Assembly, Orifice Holder (right Front)   (Replaces: W10892731)			Immediately	$ 71.63
2E	W11334714		Assembly, Orifice Holder (right Rear)   (Replaces: W10892482)				$ 126.79
3A	W10892418		Orifice, Main (15.4k) (left Rear, Center Front, Right Rear)			Immediately	$ 103.03
3B	W10892440		Orifice, Main (7.2k) (center Rear)				$ 99.86
3C	W11661909		Orifice, Simmer (2.6k) (all Except Center Rear)   (Replaces: W10892435)			Immediately	$ 74.14
3D	W10892429		Orifice, Simmer (2.0k) (center Rear)				$ 99.86
4A	W11580024		Igniter (center Front)   (Replaces: W11238758)			Immediately	$ 23.66
4B	W11238756		Igniter (center Rear)			Immediately	$ 67.96
5A	W11516481		Assembly, Grate (black (center))   (Replaces: W11172654)				$ 260.06
5B	W11516462		Assembly, Grate (black (right))   (Replaces: W11172625)				$ 265.07
