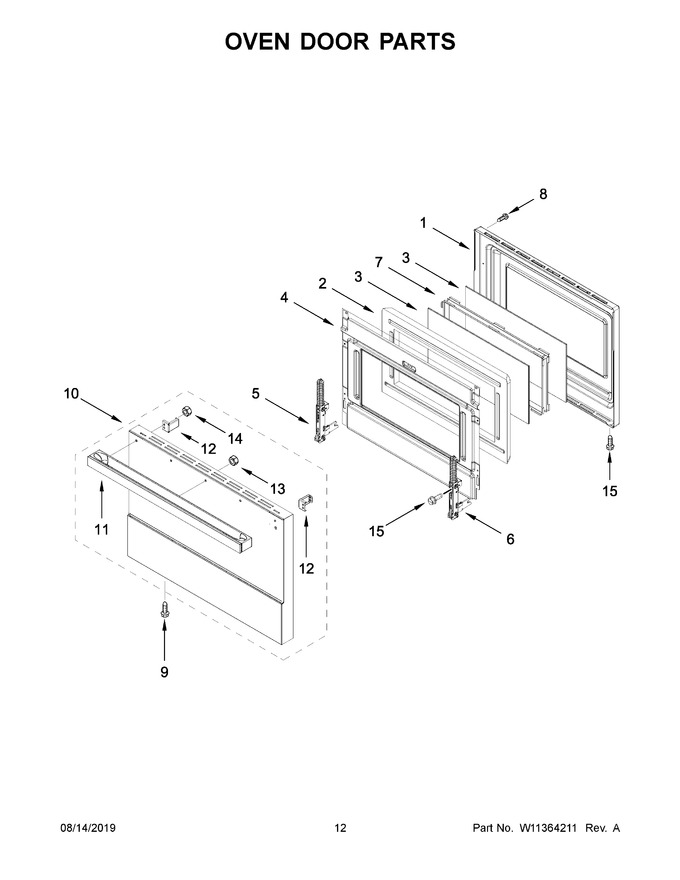

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11334152		Liner, Door   (Replaces: W11036772)				$ 417.57
2	W11688331		Insulation, Door   (Replaces: W10884823)				$ 46.39
3	W11334153		Glass, Inner   (Replaces: W11036791)				$ 125.70
4	W11194820		Retainer, Glass				$ 190.50
5	W11096984		Hinge, Door (left)				$ 234.79
6	W11096983		Hinge, Door (right)				$ 175.04
7	W11194814		Frame, Glass			Immediately	$ 349.83
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	W10162096		Screw				$ 21.90
10	W11315587		Assembly, Outer Door Glass (includes Handle)   (Replaces: W10870229)				$ 2,487.90
11	W11334154		Handle, Door   (Replaces: W11125545)				$ 766.48
12	W11317894		Bracket, Handle   (Replaces: W11194816)		Appelez-nous	-
13	W11198435		Nut		Appelez-nous	-
14	999299		Nut		Appelez-nous	-
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72
NI	CERAMABRYTE		Accessory Parts, Cleaner, Cooktop   (Replaces: 31464)			Immediately	$ 9.95
NI	W10285449		Accessory Parts, 48" With Shelves				$ 525.67
NI	W11323061		Accessory Parts, Chrome, Surface And Grill				$ 78.15
NI	W10160195		Accessory Parts, Cover, Grill/griddle			Immediately	$ 264.61
NI	4396920		Accessory Parts, Stainless Steel Cleaner & Polish		Appelez-nous	-
NI	W10216179		Accessory Parts, Ring, Wok Backsplash				$ 26.46
NI	W11317499		Accessory Parts, Chrome, Oven				$ 28.02
NI	W11323024		Accessory Parts, Chrome, Griddle				$ 48.50
NI	W11316873		Accessory Parts, Brass, Surface And Gril			Immediately	$ 49.29
NI	W11323067		Accessory Parts, Brass, Oven				$ 70.56
NI	W11317495		Accessory Parts, Brass, Griddle				$ 55.28
NI	W11323068		Accessory Parts, Brass, Oven Bezel (single)		Appelez-nous	-
NI	W11323062		Accessory Parts, Chrome, Surface And Grill				$ 165.82
NI	W11323012		Accessory Parts, Brass, Large Kit, Bezel (set Of 4)			Immediately	$ 97.89
NI	W11323015		Accessory Parts, Brass, Small				$ 74.41
NI	W11323014		Accessory Parts, Brass, Large Burner Cap (single)			Immediately	$ 323.05
NI	W11238043		Accessory Parts, Kit, High Altitude Kit, Burner Cap (set Of 4)		Appelez-nous	-
NI	W10285449		Accessory Parts, Stainless Steel Wallsplash   (Replaces: JXA9001CDP)				$ 525.67
NI	8284755		Accessory Parts, Backsplash (adjustable)		Appelez-nous	-
NI	W10123240		Accessory Parts, Rack, Broiler Pan & Roasting			Immediately	$ 165.60

    View Diagram in Separate Window       Print Part List
