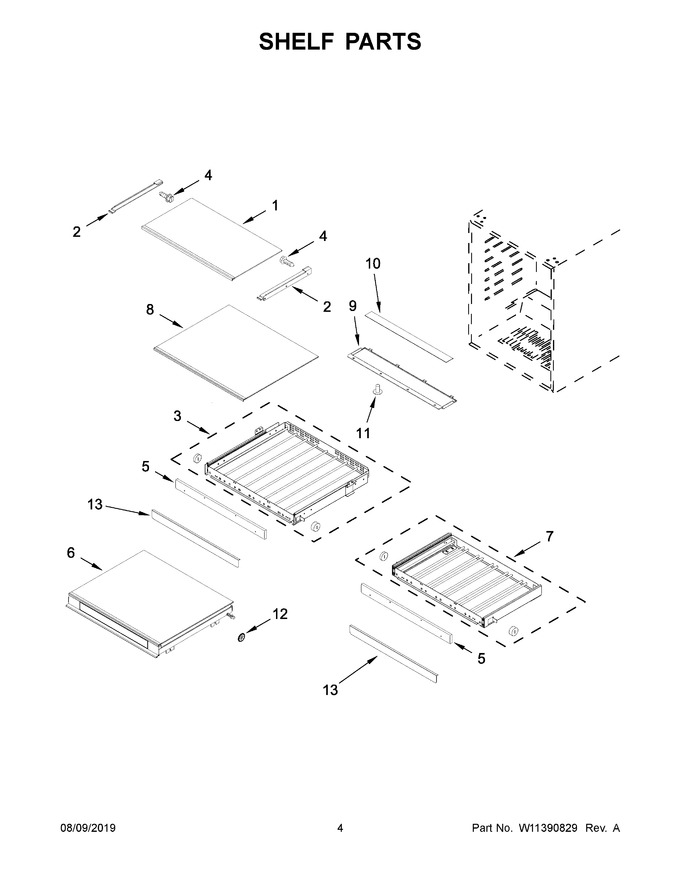

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10807583 | Glass Shelf Assembly, Top (Replaces: W10803988) |
|
$ 266.83 | |||||
| 2 | W10797333 | Support, Shelf (right Hand) |
|
$ 30.15 | |||||
| 3 | W10803968 | Top Wine Rack Assembly (right Hinge) |
|
$ 361.03 | |||||
| 4 | W10319187 | Screw (Replaces: W10780344) |
|
$ 73.51 | |||||
| 5 | W11240776 | Stainless Trim (Replaces: W10803987) |
|
$ 134.07 | |||||
| 6 | W10807582 | Control Panel Assembly (Replaces: W10803981) |
|
$ 467.97 | |||||
| 7 | W10803971 | Wine Rack Assembly, Lower |
|
$ 361.12 | |||||
| 8 | W10803990 | Glass Shelf Assembly, Bottom |
|
- | |||||
| 9 | W10622774 | Lens, Light |
|
$ 33.12 | |||||
| 10 | W11441723 | Led Light Bar (Replaces: W10797323) |
|
$ 294.65 | |||||
| 11 | W10204808 | Screw (Replaces: W10797324) |
|
- | |||||
| 12 | W10621514 | Liner Bushing |
|
$ 31.71 | |||||
| 13 | W10803984 | Trim (wood) |
|
$ 135.46 | |||||
| 2A | W10797332 | Support, Shelf (left Hand) |
|
$ 30.15 | |||||
| 3A | W10803969 | Top Wine Rack Assembly (left Hinge) |
|
$ 360.82 |
