01 - Cover Sheet
02 - Cabinet Parts
03 - Shelf Parts

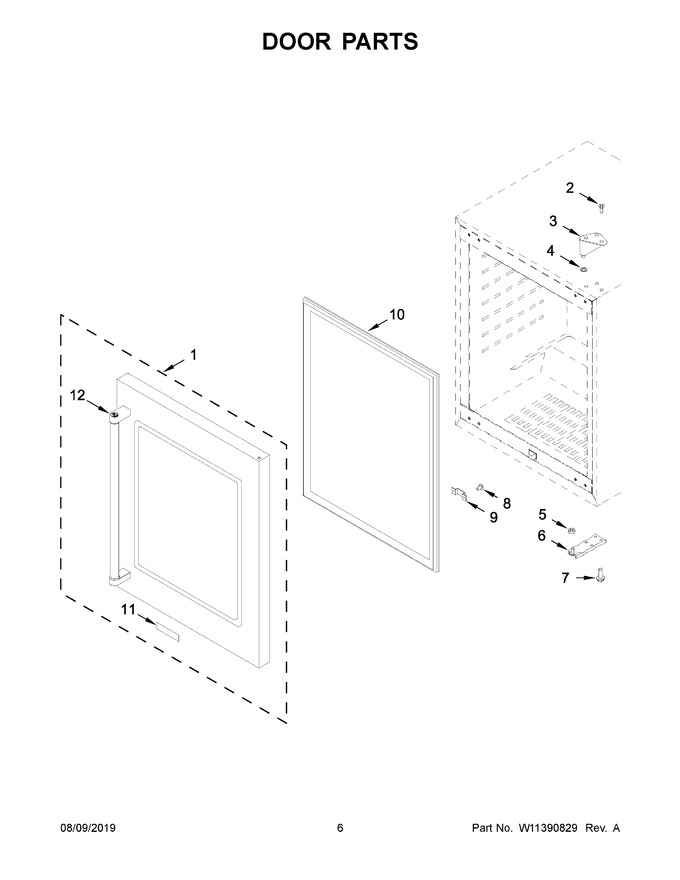

04 - Door Parts
05 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11632845 | Complete, Door (right Hinge) (components Not Serviced) (Replaces: W10913036) |
|
$ 1,231.98 | |||||
| 2 | W10162988 | Screw |
|
- | |||||
| 3 | W10913035 | Hinge, Top |
|
$ 99.03 | |||||
| 4 | 4344760 | Washer |
|
$ 15.91 | |||||
| 5 | W11241702 | Washer (Replaces: W10162992) |
|
$ 14.27 | |||||
| 6 | W10239363 | Bottom Hinge (right Hinge) (Replaces: 4344753) |
|
$ 80.61 | |||||
| 7 | W10780355 | Bolt |
|
$ 50.19 | |||||
| 8 | W10319187 | Screw (Replaces: W10780344) |
|
$ 73.51 | |||||
| 9 | W10622808 | Switch Plate |
|
$ 27.27 | |||||
| 10 | W11625076 | Gasket (Replaces: W10797384) |
|
$ 109.21 | |||||
| 11 | W11179312 | Nameplate (Replaces: W10772910) |
|
$ 93.49 | |||||
| 12 | N/P | Handle (not Serviced) |
|
- | |||||
| 1A | W10913038 | Complete, Door (left Hinge) (components Not Serviced) |
|
$ 888.30 | |||||
| 6A | 4344787 | Bottom Hinge (left Hinge) |
|
$ 217.36 |
