SELECT A DIAGRAM

01 - Door And Panel, Literature


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm


05 - Heater


06 - Fill And Overfill


07 - Tub And Frame


08 - Pump And Motor


09 - Upper Rack And Track


10 - Upper Wash And Rinse


11 - Lower Rack


12 - Miscellaneous, Optional

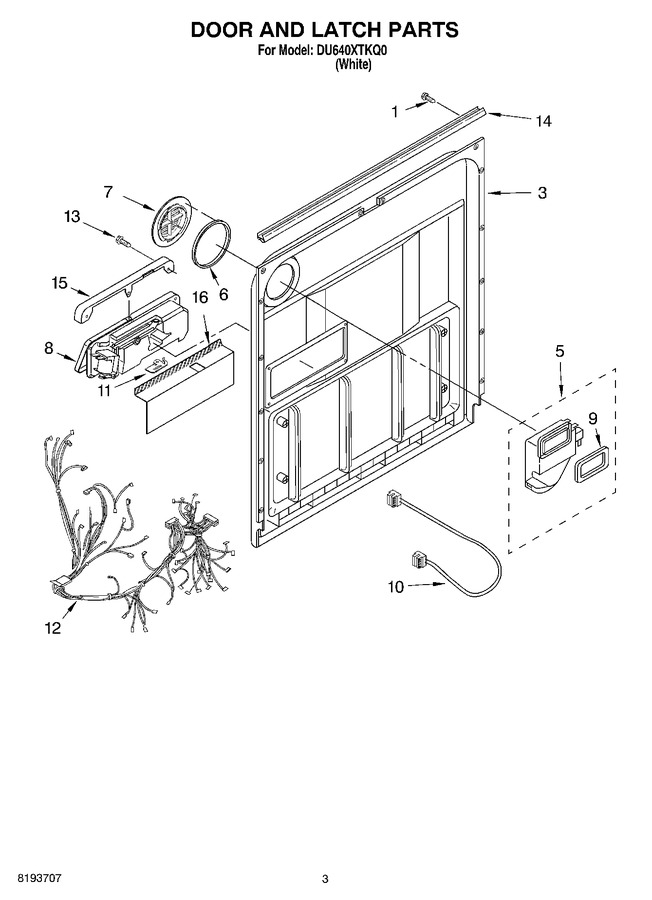

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 8.20
3	WP8269311		Inner Door (also Order Item 6)   (Replaces: 8269311)				$ 299.59
5	WP8545533		Vent Assembly (also Order   (Replaces: 8269251)				$ 203.60
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8558991		Deflector, Vent (also Order Item 6)   (Replaces: 8269261)				$ 19.64
8	WP8558129		Dispenser, Assembly   (Replaces: 8270034)			Immediately	$ 79.69
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 96.86
10	8269190		Dispenser, Wiring Harness				$ 36.73
11	WP8533381		Sensor, Rinse Aid   (Replaces: 8269189)				$ 80.75
12	8269734		Wiring Harness Main		Appelez-nous	-
13	WPW10177098		Screw   (Replaces: 8281154)			Immediately	$ 8.02
14	WP8269296		Seal, Console/door   (Replaces: 8269296)			Immediately	$ 188.17
15	WPW10462232		Bracket, Dispenser   (Replaces: 8269743)				$ 37.79
16	8268541		Shield, Dispenser		Appelez-nous	-
