Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10518394 Heater Element Assembly (also Includes Item 2)   (Replaces: 8268559) In-Stock Immediately $ 52.43

2 WP717273 Washer, Heater Element   (Replaces: 717273) In-Stock Immediately $ 7.19

3 WPW10477552 Nut, Heater Element   (Replaces: 8268548) In-Stock Immediately $ 7.76

4 W11027055 Bracket, Heater Support   (Replaces: 8269262) Special Order $ 34.13


    View Diagram in Separate Window     Print Icon   Print Part List

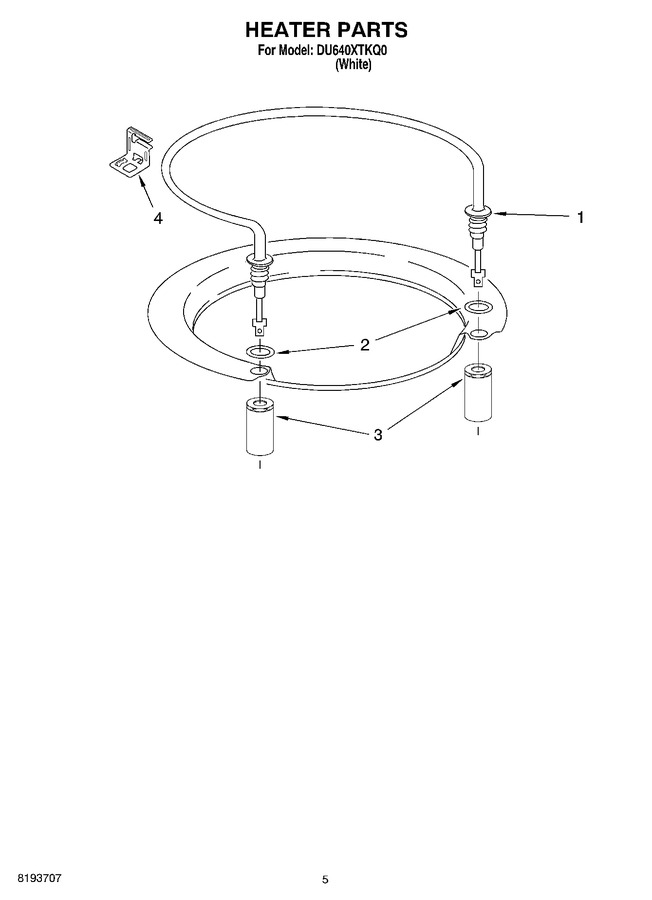

Diagram for DU640XTKQ0
