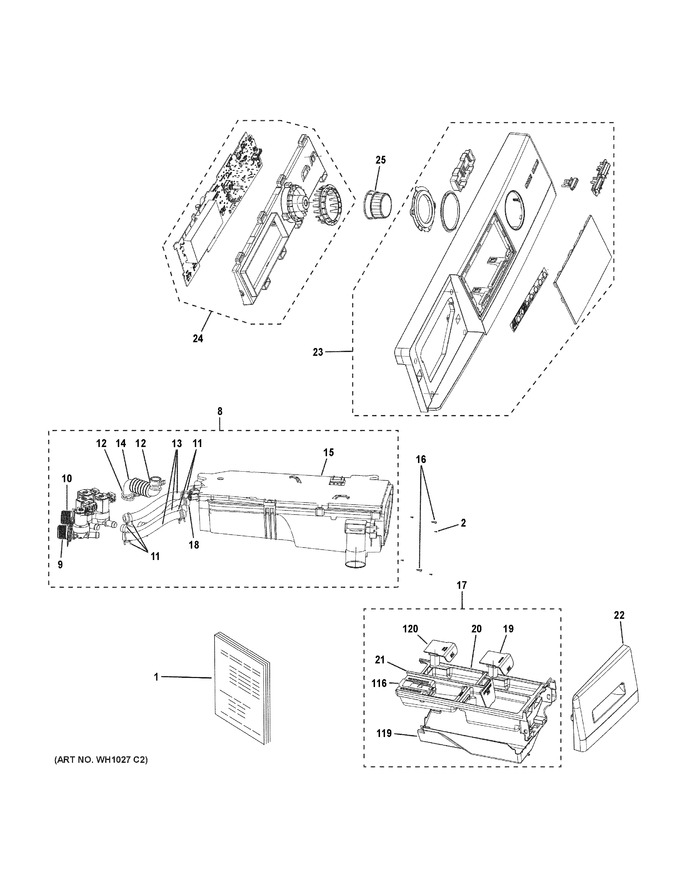

SELECT A DIAGRAM

Cabinet


Controls & Dispenser


Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-90570		Pm Manual Use And Care		Appelez-nous	-
2	WH02X26236		Screw		Appelez-nous	-
8	WH47X28498		Disp Hsg Wtr Valve Hoses Asm		Appelez-nous	-
8	WH47X26554		Dispenser Asm		Appelez-nous	-
9	WH13X28374		Hot Water Valve				$ 47.10
10	WH13X28339		Cold Valve		Appelez-nous	-
11	WH01X26244		Tube Clamp		Appelez-nous	-
12	WH01X26245		Tub Vent Hose Clamp		Appelez-nous	-
13	WH01X28397		Water Inlet Tube 6.5"		Appelez-nous	-
14	WH41X28340		Tub Vent Hose		Appelez-nous	-
15	WH41X28338		Dispenser Housing Asm		Appelez-nous	-
16	WH02X26514		Front Dispenser Housing Screw St4x14		Appelez-nous	-
17	WH47X28341		Dispenser Drawer Asm		Appelez-nous	-
18	WH01X28398		Water Inlet Hose		Appelez-nous	-
19	WH43X28343		Softener Siphon Cap		Appelez-nous	-
20	WH15X28419		Disp Liquid To Powder Flap		Appelez-nous	-
21	WH47X28342		Dispenser Drawer		Appelez-nous	-
22	WH47X28361		Dispenser Drawer Handle Assembly		Appelez-nous	-
23	WH18X28344		Control Panel Asm		Appelez-nous	-
24	WH18X28345		User Interface Asm		Appelez-nous	-
25	WH11X26254		Cycle Select Knob		Appelez-nous	-
116	WH47X28413		Drawer Release Lever		Appelez-nous	-
119	WH47X28399		Disp Drawer Guiding Panel		Appelez-nous	-
120	WH47X28400		Bleach Siphon Cap		Appelez-nous	-
999	WH41X28683		Inlet Hoses		Appelez-nous	-
