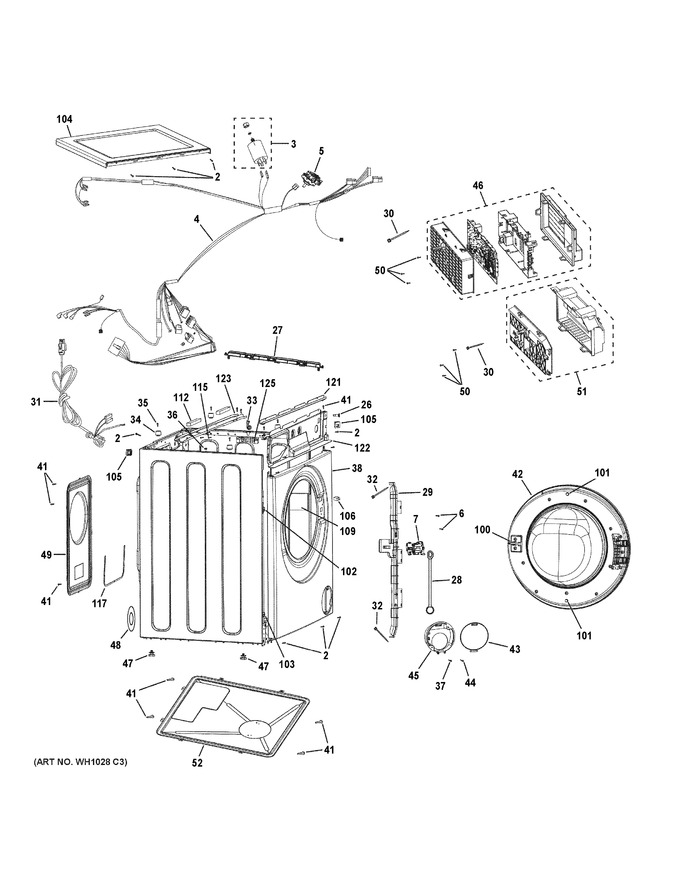

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WH02X26236		Screw		Appelez-nous	-
3	WH43X28369		Line Filter Assemby		Appelez-nous	-
4	WH19X28337		Main Harness		Appelez-nous	-
5	WH12X27815		Pressure Switch		Appelez-nous	-
6	WH02X26240		Screw		Appelez-nous	-
7	WH01X28354		Door Lock		Appelez-nous	-
26	WH02X28411		Control Panel Aligning Screw M4*8		Appelez-nous	-
27	WH19X26256		Lower Harness Track		Appelez-nous	-
28	WH16X26579		Manual Door Unlock Strap		Appelez-nous	-
29	WH19X26258		Front Harness Track		Appelez-nous	-
30	WH01X26259		Wire Tie		Appelez-nous	-
31	WH19X28346		Power Cord		Appelez-nous	-
32	WH02X26262		Spring Sheath Right		Appelez-nous	-
33	WH02X26263		Spring Hanger Clip		Appelez-nous	-
34	WH01X26264		Top Panel Guide Pin		Appelez-nous	-
35	WH02X28370		Top Panel Guide Pin Screw		Appelez-nous	-
36	WH16X26266		Top Front Bracket		Appelez-nous	-
36	WH02X26262		Spring Sheath Left		Appelez-nous	-
37	WH02X26267		Screw		Appelez-nous	-
38	WH46X28347		Front Panel		Appelez-nous	-
38	WH46X28499		Front Panel		Appelez-nous	-
41	WE02X27505		Hinge Screw		Appelez-nous	-
42	WH46X28348		Inner Door Frame White		Appelez-nous	-
43	WH42X28355		Drain Cleanout Access Door (white)		Appelez-nous	-
44	WH02X26189		Tapping Screw		Appelez-nous	-
45	WH42X28356		Access Door Frame		Appelez-nous	-
46	WH18X28357		Power Board Asm		Appelez-nous	-
47	WH46X28359		Leveling Leg		Appelez-nous	-
48	WH41X26282		External Hose Guide		Appelez-nous	-
49	WH44X27615		Rear Cover		Appelez-nous	-
49	WH44X26283		Rear Cover		Appelez-nous	-
50	WH02X26188		Tapping Screw		Appelez-nous	-
51	WH18X28358		Inverter Board Asm		Appelez-nous	-
52	WH17X26287		Bottom Cover Plate		Appelez-nous	-
100	WH01X28362		Door Strike		Appelez-nous	-
101	WH01X28349		Doorplug		Appelez-nous	-
102	WH01X26843		Upper Guide Pin		Appelez-nous	-
103	WH01X26844		Lower Guide Pin		Appelez-nous	-
104	WE20X27513		Top Cover				$ 93.13
105	WH19X28403		Rj45 Connector		Appelez-nous	-
106	WH18X28404		Door Switch		Appelez-nous	-
109	WH01X28409		Square Felt		Appelez-nous	-
112	WH01X28406		Foam Pad (crossbrace)		Appelez-nous	-
115	WH02X28410		Ground Screw		Appelez-nous	-
117	WH08X28414		Rear Cover Seal		Appelez-nous	-
121	WE01X27779		Water Channel		Appelez-nous	-
122	WH17X28401		Control Panel Mounting Bracket		Appelez-nous	-
123	WH16X28497		Cross Brace		Appelez-nous	-
123	WH16X28415		Cross Brace		Appelez-nous	-
125	WH46X28412		Cross Brace Connection Reinforcement		Appelez-nous	-
126	WH02X28479		Bolt M6		Appelez-nous	-
