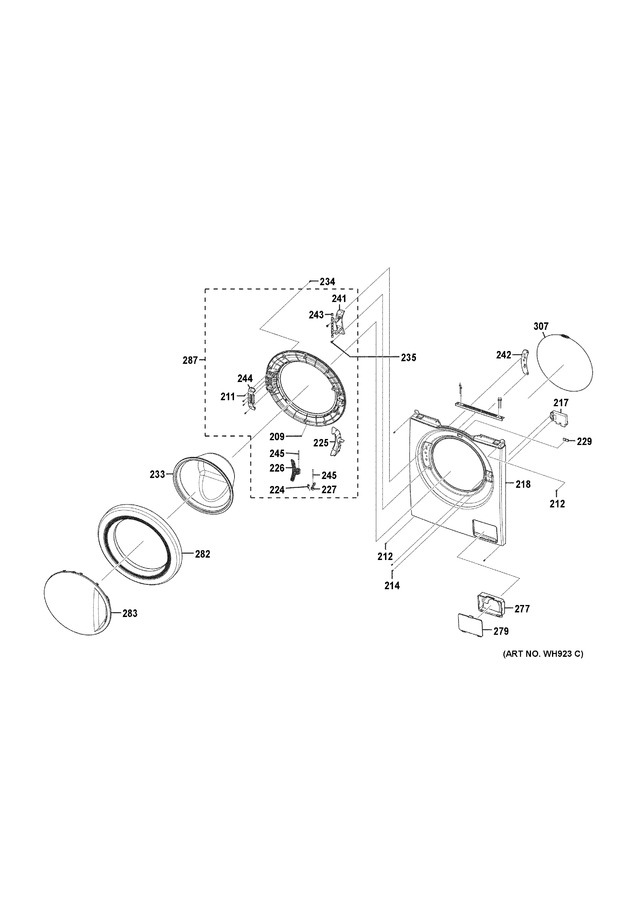

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
209	WH01X10474		Door Glass Holder		Appelez-nous	-
211	WH02X10289		Scr (m4*l14)		Appelez-nous	-
212	WB01X10084		Screw Washer		Appelez-nous	-
214	WH02X10294		Scr (m4*l12)		Appelez-nous	-
217	WG04L01621		Door Lock   (Replaces: WH10X10008)			Immediately	$ 300.94
218	WG04L03073		Front Panel Wh   (Replaces: WH46X10268)				$ 235.17
224	WH01X10640		Spring Etc-lever		Appelez-nous	-
225	WH44X10223		Cover Handle		Appelez-nous	-
226	WH01X10477		Handle Door		Appelez-nous	-
227	WG04L02902		Lever Door   (Replaces: WH01X10481)				$ 139.01
229	WG04F05310		Door Switch   (Replaces: WH12X10444)				$ 103.56
233	WH46X10228		Door Glass		Appelez-nous	-
234	WH02X10325		Screw-tapping (m4xl14)		Appelez-nous	-
235	WH02X10351		Screw-hex		Appelez-nous	-
241	WH01X10479		Hinge Door		Appelez-nous	-
242	WH16X10123		Bracket Hinge		Appelez-nous	-
243	WH01X10480		Hinge Guide		Appelez-nous	-
244	WH16X10155		Bracket-holder		Appelez-nous	-
245	WH01X10483		Pin - Door		Appelez-nous	-
277	WH01X10492		Pump Access Shroud Wh		Appelez-nous	-
279	WG04L02114		Pump Access Door Wh   (Replaces: WH01X10641)				$ 42.88
282	WG04L02040		Cover Door   (Replaces: WH46X10227)				$ 230.05
283	WG04L03071		Door Window   (Replaces: WH46X10230)			Immediately	$ 173.26
287	WG04L03070		Door Glass Holder Asm   (Replaces: WH46X10229)				$ 206.90
307	WH08X10044		Gasket Clamp Front Panel		Appelez-nous	-
