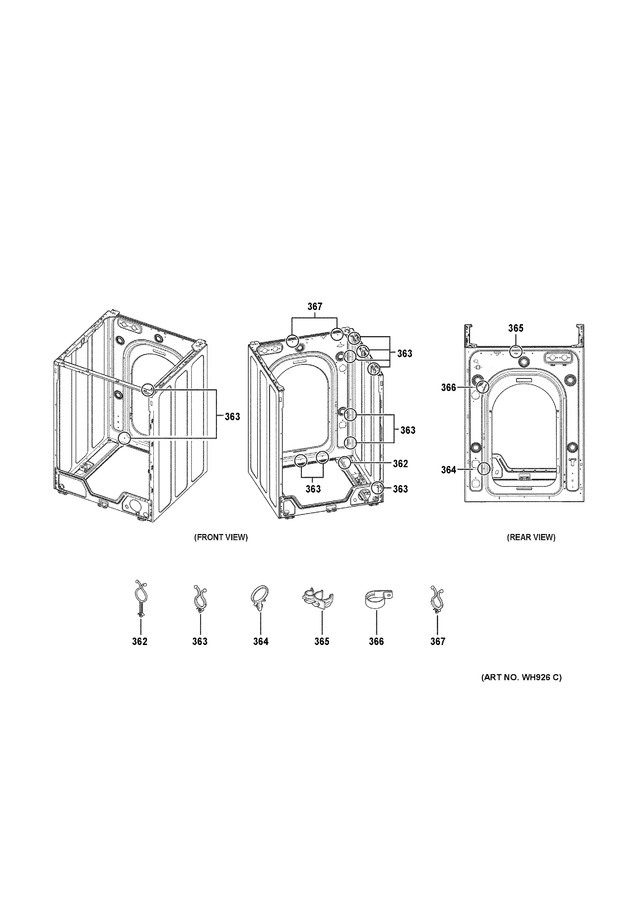

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 362 | WH01X10498 | Wire Tie |
|
- | |||||
| 363 | WH01X10499 | Wire Tie |
|
- | |||||
| 364 | WH01X10500 | Wire Tie |
|
- | |||||
| 365 | WH01X10501 | Outside Drain Hose Clamp |
|
- | |||||
| 366 | WH01X10502 | Clamp Hose-fix |
|
- | |||||
| 367 | WH01X10661 | Wire Tie |
|
- |
