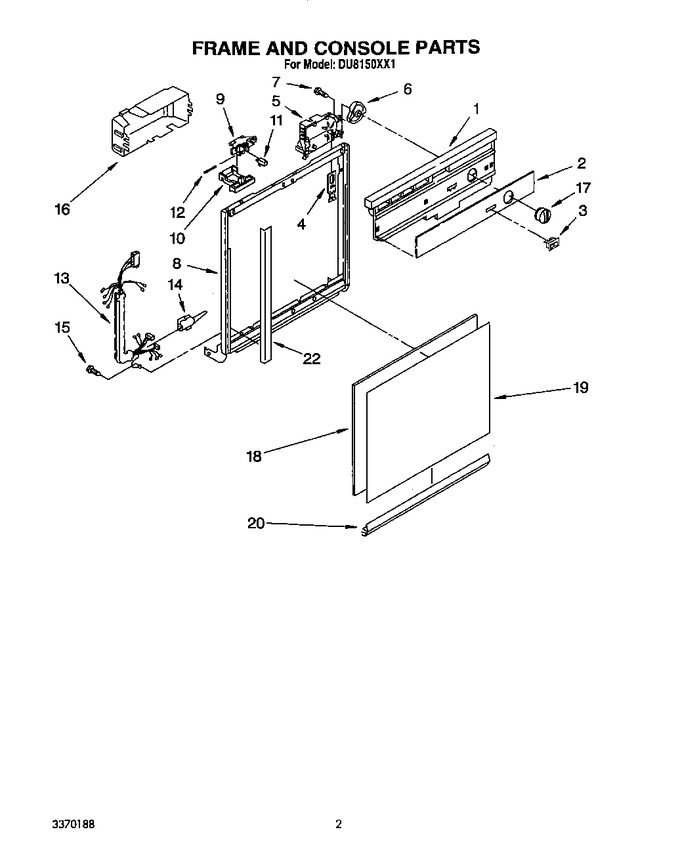

02 - Frame And Console
03 - Inner Door
04 - Tub Assembly, Lit/optional
05 - Pump And Spray Arm
06 - Pump And Motor, Miscellaneous
07 - Dishrack
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3369607 | Console |
|
- | |||||
| 2 | 3371734 | Insert, Console |
|
- | |||||
| 3 | WP4314961 | Switch, Rocker (Replaces: 3369612) |
|
$ 93.95 | |||||
| 4 | 3368997 | Follower, Cam |
|
$ 35.20 | |||||
| 5 | 3370832 | Timer |
|
- | |||||
| 6 | 3369415 | Cam |
|
- | |||||
| 7 | WP304231 | Screw, 8-18 X 1/2 (3) (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 3368900 | Door Frame |
|
- | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3368953) |
|
Immediately | $ 66.11 | ||||
| 10 | WP3368954 | Lever, Latch (Replaces: 3369573) |
|
$ 8.70 | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 3372377 | Harness And Protector |
|
- | |||||
| 14 | 3368977 | Elbow, Harness |
|
- | |||||
| 15 | WP488234 | Screw, 8-32 X 1/4 (Replaces: 9412221) |
|
$ 7.08 | |||||
| 16 | 3368964 | Cover, Timer |
|
- | |||||
| 17 | 3369611 | Knob, Timer |
|
- | |||||
| 18 | 3368979 | Spacer, Corrugated |
|
$ 38.99 | |||||
| 19 | 3371716 | +front Panel (white) |
|
$ 49.13 | |||||
| 20 | 3370858 | Retainer, Panel |
|
- | |||||
| 22 | 3371194 | Trim, Side (2) |
|
- |
