SELECT A DIAGRAM

02 - Frame And Console


03 - Inner Door

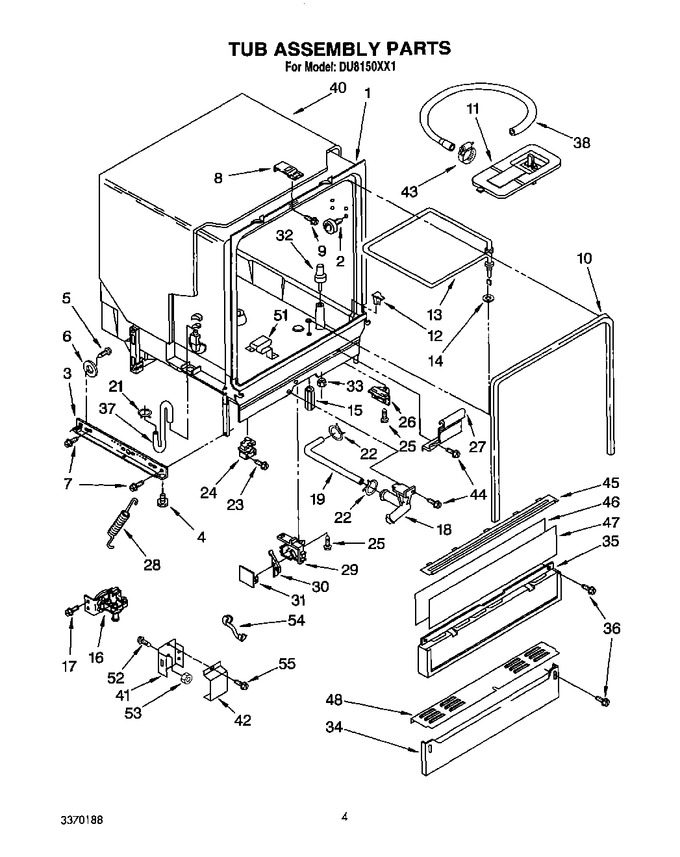

04 - Tub Assembly, Lit/optional


05 - Pump And Spray Arm


06 - Pump And Motor, Miscellaneous


07 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3370850		Tub Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 302849)			Immediately	$ 84.72
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.85
8	3372030		Plate, Latch		Appelez-nous	-
9	3372029		Screw		Appelez-nous	-
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369002)				$ 94.34
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	WPW10082894		Heater   (Replaces: 3372378)				$ 134.78
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.19
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3371817		Water Valve		Appelez-nous	-
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.86
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369050		Hose, Coupler		Appelez-nous	-
21	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.40
22	371499		Clamp (double)				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 10.88
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.75
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 77.69
27	3368983		Shield, Harness		Appelez-nous	-
28	3369337		Spring & Bearing Assembly (2)		Appelez-nous	-
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 3369072)				$ 118.97
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	3369614		Panel, Access				$ 65.43
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 7.75
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 102.23
40	W11086533		Sound Shield   (Replaces: 3369329)			Immediately	$ 31.30
41	3370292		Box, Terminal		Appelez-nous	-
42	300068		Cover Assembly Terminal Box				$ 30.14
43	WP3367052		Hose Clamp   (Replaces: 3367052)				$ 8.32
44	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.06
45	3372413		Retainer, Access Panel				$ 40.99
46	3369526		Spacer, Corrugated				$ 25.23
47	3371717		+access Panel (white)		Appelez-nous	-
48	3369531		Extension		Appelez-nous	-
51	3368987		Support, Heater		Appelez-nous	-
52	WP250830		Screw, 8-32 X 1/2   (Replaces: 3371578)				$ 7.95
53	WP488130		Nut, 8-32   (Replaces: 3371579)				$ 6.97
54	3370307		Relief, Strain		Appelez-nous	-
55	3369138		Screw, 8-18				$ 5.81
	LIT3369093		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	4317926		Side Panel Kits (avocado)		Appelez-nous	-
	4317925		Side Panel Kits (white)		Appelez-nous	-
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 46.02
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 35.22
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 45.39
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	799340		Black (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	350942		Primer (white)   (Replaces: 206922)				$ 89.66
	285006		Paint, Spray 13 Oz. (black)				$ 57.04
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	LIT3370188		Parts List		Appelez-nous	-
	4317931		Side Panel Kits (platinum)		Appelez-nous	-
	4317930		Side Panel Kits (toast)		Appelez-nous	-
	4317929		Side Panel Kits (almond)		Appelez-nous	-
	4317927		Side Panel Kits (gold)		Appelez-nous	-
	LIT3370464		Wiring Diagram		Appelez-nous	-
	LIT3369271		Guide, Use & Care		Appelez-nous	-
	LIT3370042		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
