01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

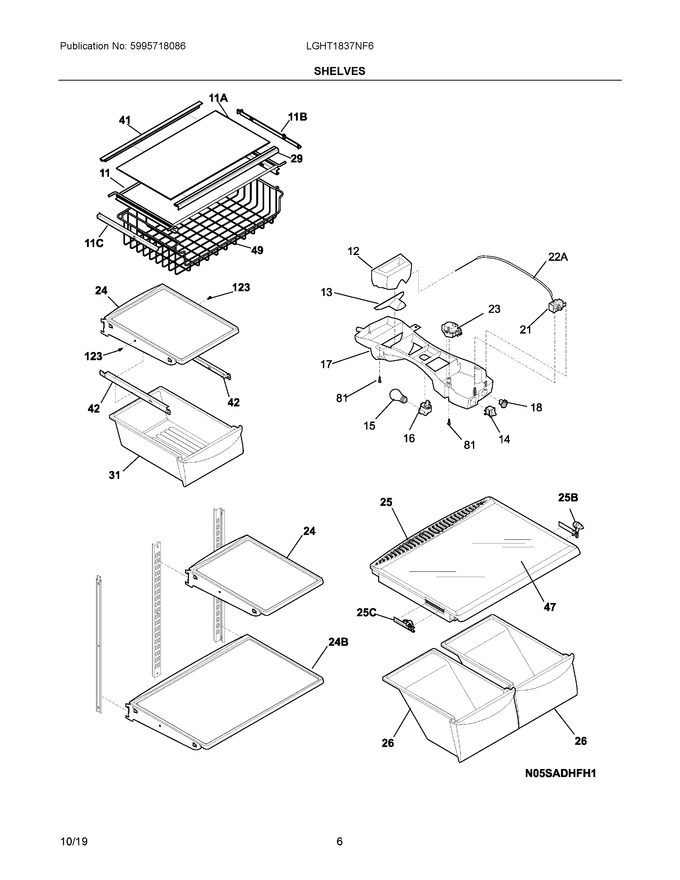

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242087804 | Frame-shelf, Full Width |
|
- | |||||
| 12 | 241542001 | Diffuser, Air, Top |
|
Immediately | $ 82.69 | ||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 46.46 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 78.75 | |||||
| 15 | 5304511738 | Light Bulb (Replaces: 241560701) |
|
Immediately | $ 26.96 | ||||
| 16 | 241559801 | Socket-light |
|
$ 80.75 | |||||
| 17 | 240352703 | Control Box |
|
$ 53.72 | |||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control, Temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| 23 | 215846604 | Timer-defrost (Replaces: 241809401) |
|
Immediately | $ 27.31 | ||||
| 24 | 241616607 | Shelf-"spill-safe", Cantilever, Half Width, Fixed |
|
$ 163.12 | |||||
| 25 | 240364787 | Cover-crisper Pan |
|
Immediately | $ 134.42 | ||||
| 26 | 240337103 | Pan-crisper, Clear, (2), No Graphics |
|
Immediately | $ 164.83 | ||||
| 29 | 242110902 | Trim-shelf, Front |
|
$ 34.97 | |||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear |
|
Immediately | $ 150.86 | ||||
| 41 | 242111002 | Trim-shelf, Rear |
|
- | |||||
| 42 | 240356501 | Track, Meat Pan Hanger, Rh |
|
Immediately | $ 63.00 | ||||
| 47 | 240350608 | Insert-pan Cover, 23.82" X 15.50", Glass |
|
Immediately | $ 50.55 | ||||
| 49 | 241833101 | Basket-sliding, Full Sliding, Wire, Frzr |
|
- | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 123 | 215005101 | Screw, Hanger/rlr Mtg, 8-10 X 7/16 |
|
$ 16.54 | |||||
| 11A | 242087902 | Glass-shelf, Full Shelf |
|
$ 122.43 | |||||
| 11B | 241848601 | Cover, Hanger Rh, Wire Basket |
|
- | |||||
| 11C | 241848602 | Cover, Hanger Lh, Wire Basket |
|
- | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White (Replaces: 240468201) |
|
$ 10.11 | |||||
| 24B | 241712304 | Shelf-"spill-safe", Cantilever Fixe |
|
$ 227.17 | |||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 53.09 | |||||
| NI | 242146241 | Label, Energy Guide |
|
- | |||||
| NIA | 218515401 | Clip, Grille/tube |
|
$ 19.69 | |||||
| NIA | 240568606 | Seal (Replaces: 240568607) |
|
$ 14.18 | |||||
| NIA | 5304455649 | Screw, Pan Hd, 6-20 X 0.438 |
|
$ 18.90 | |||||
| NIA | 5303299664 | Spacer, Shelf |
|
$ 26.78 | |||||
| NIB | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 240570304) |
|
$ 34.84 | |||||
| NIC | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 88.99 |
