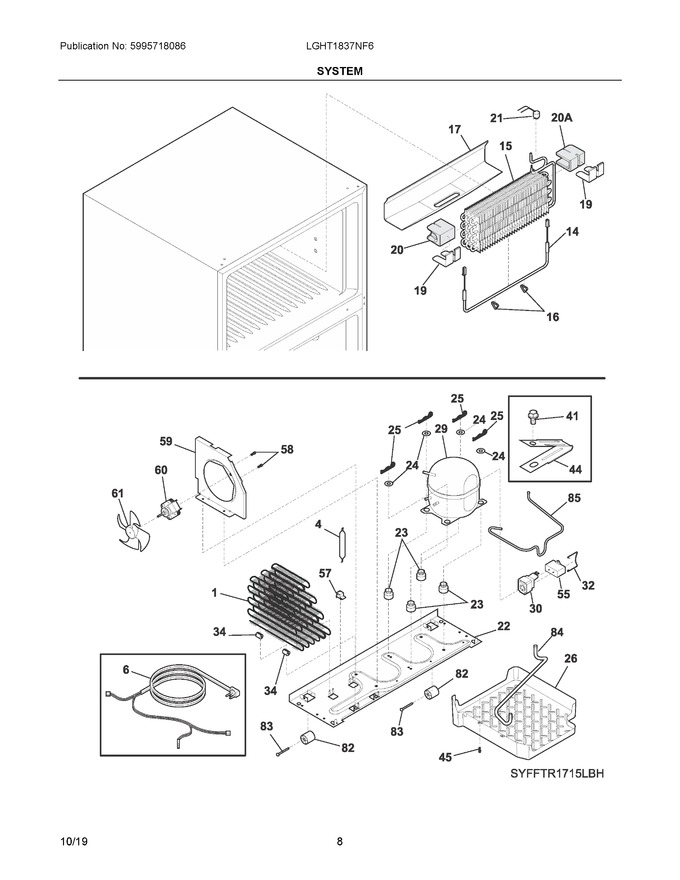

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785404		Condenser, Dynamic				$ 188.21
4	5303305677		Dryer-filter, W/process Tube   (Replaces: 242190201)			Immediately	$ 35.19
6	5304521786		Harness-wiring, Machine Compt   (Replaces: 242019701)				$ 140.72
14	5303918208		Defrost Heater Kit			Immediately	$ 121.28
15	5303918492		Evaporator Kit				$ 198.71
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 66.47
17	241801301		Trough-drain				$ 71.62
19	242320401		Shield, Heat, Evap Block				$ 74.99
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 12.47
21	5303918634		Thermostat Kit, Defrost, W/connector			Immediately	$ 44.79
22	241665504		Base-compressor				$ 88.99
23	218513300		Grommet-compr Mtg, (4)				$ 47.25
24	241812301		Washer-compr Mtg				$ 14.32
25	242037701		Clip-compressor Mtg				$ 3.15
26	241920605		Pan-defrost				$ 59.73
29	240550946		Compressor, W/o Electricals   (Replaces: 240550937)			Immediately	$ 440.73
30	241941005		Starter				$ 127.60
32	297030500		Clamp, Elec Cont Mtg, Compressor			Immediately	$ 13.39
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 22.05
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
44	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
45	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
55	297286803		Capacitor-run			Immediately	$ 31.97
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569202		Screw, 8-18 X .500				$ 2.36
59	242050604		Shroud, Cond Fan Motor   (Replaces: 242050601)				$ 30.71
60	242018301		Motor-condenser Fan			Immediately	$ 153.95
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 24.43
82	240335202		Roller, Compressor Base, Rear				$ 23.63
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 39.27
84	240500801		Tube-drain, Rubber, Lower				$ 72.45
85	241871503		Tube-connector, Suction				$ 54.77
1A	242213901		Deflector, Air				$ 21.91
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 12.75
22A	241665606		Base-compressor, W/rollers				$ 215.71
82A	5304418225		Roller, Compressor Base, Rear, (2)				$ 57.30
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 21.26
NI	5303918263		Heat Exchanger Kit, Suction Line				$ 512.40
NIA	240346701		Tape-foam Seal, Shroud				$ 33.08
NIA	240388701		Wiring Harness, Control Box			Immediately	$ 88.99
NIB	240359403		Screw-fan Shroud, (2)				$ 4.21
NIB	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
