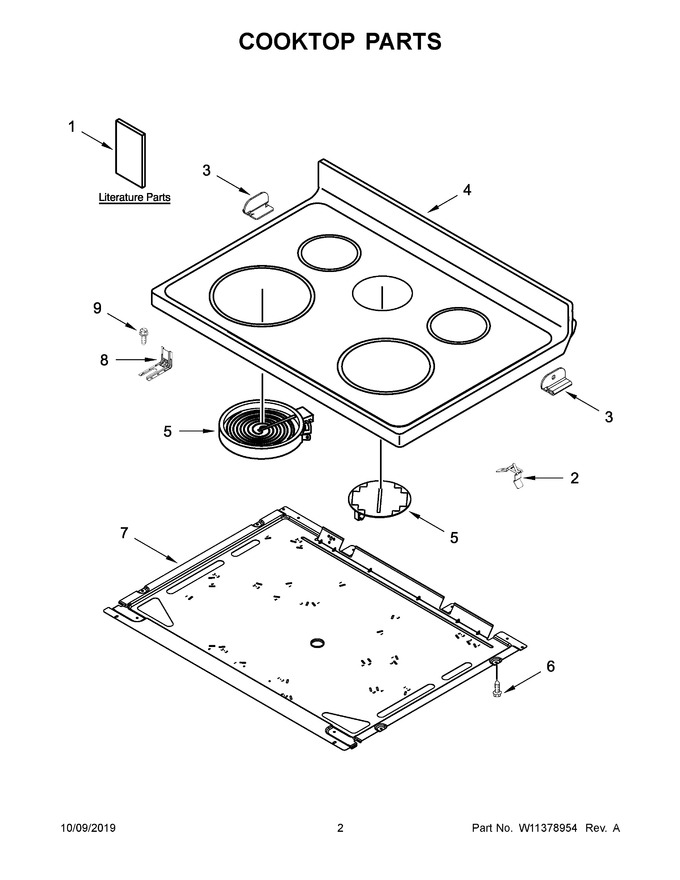

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11333088		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11175876		Cooktop (black)   (Replaces: W11034825)				$ 629.24
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W11333073		Use And Care Guide		Appelez-nous	-
1B	W11351201		Sheet, Tech		Appelez-nous	-
1C	W11351207		Diagram, Wiring		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
4A	W11381329		Cooktop (white)   (Replaces: W11370569)				$ 616.96
5A	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
5B	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
5C	W11041453		Element, Warm Zone (center)   (Replaces: W10799048)				$ 132.95
NI	W11596058		Harness, Cooktop (right)   (Replaces: W11134551)			Immediately	$ 34.76
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11553447		Harness, Main   (Replaces: W11344556)		Appelez-nous	-
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)			Immediately	$ 39.67
NI	W11134592		Harness, Warm Zone				$ 117.26
