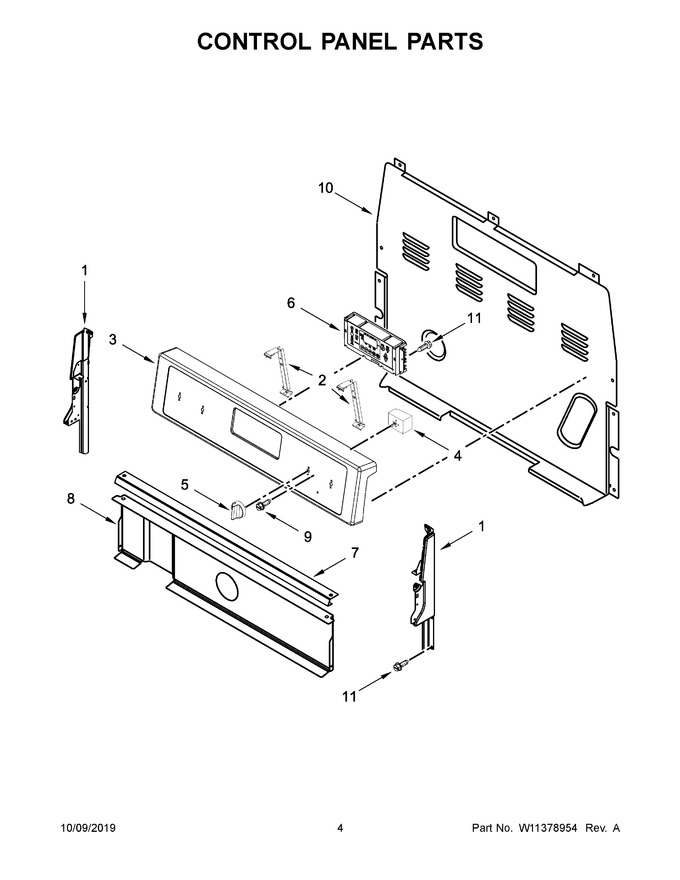

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
3	W11175523		Console, Assembly (black)   (Replaces: W11027374)		Appelez-nous	-
4	WPW10434452		Switch, Infinite (dual) (left Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 80.02
6	W11594188		Control, Electronic (lcx) (black)   (Replaces: W11204519)		Appelez-nous	-
7	W10525121		Bracket, Console Mounting				$ 98.85
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
3A	W11175525		Console, Assembly (white)   (Replaces: W11027375)				$ 481.52
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4B	WP3149400		Switch, Infinite (orange) (right Front)   (Replaces: 3148954)			Immediately	$ 90.51
5A	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 21.54
6A	W11546077		Control, Electronic (lcx) (white)   (Replaces: W11204520)				$ 366.15
