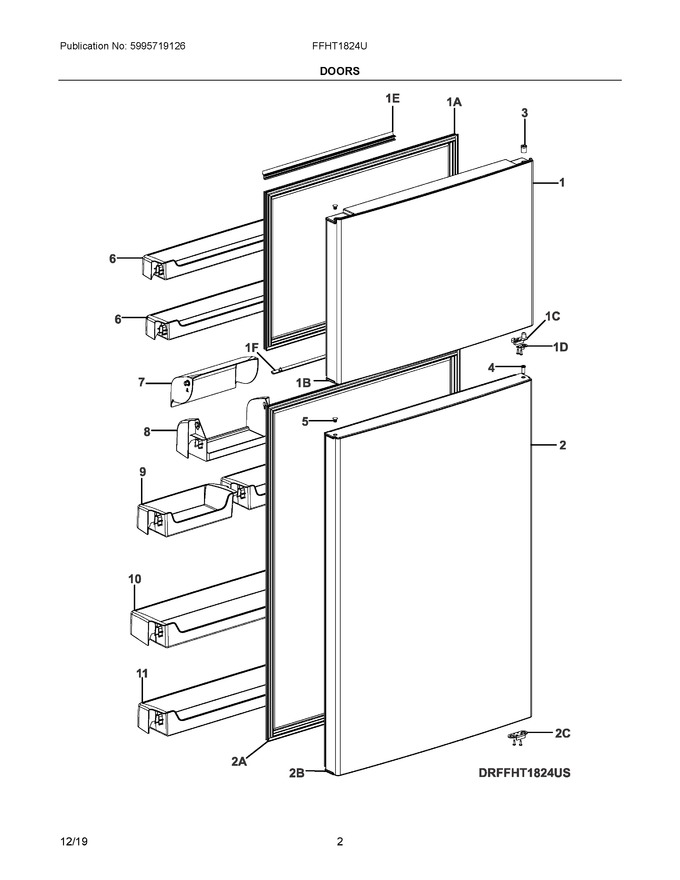

02 - Doors


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523561		Door Assembly, Freezer, White		Appelez-nous	-
2	5304523562		Door Assembly, Refrigerator, White		Appelez-nous	-
3	5304523525		Hinge Bearing, Door, Upper Hinge				$ 7.59
4	5304523523		Hinge Bearing, Door, Middle Hinge		Appelez-nous	-
5	5304523507		Cap, Door, White Model, Hinge Hole		Appelez-nous	-
6	5304523522		Bin, Door, Full Width, Freezer		Appelez-nous	-
7	5304523508		Housing, Dairy Bin		Appelez-nous	-
8	5304523509		Cover, Dairy Door		Appelez-nous	-
9	5304523518		Bin, Door, Half Width, Refrigerator		Appelez-nous	-
10	5304523521		Bin, Door, Full Width, Refrigerator, Middle				$ 78.32
11	5304523520		Bin, Door, Full Width, Refrigerator, Bottom		Appelez-nous	-
1A	5304523537		Gasket, Door, White Model, Freezer		Appelez-nous	-
1B	5304523530		End Cover, Assembly, White Model, Freezer		Appelez-nous	-
1C	5304523512		Closer, Door, Middle Hinge			Immediately	$ 8.34
1D	5304523542		Stop, Door, Middle Hinge				$ 10.62
1E	5304523526		Gasket, Secondary, Upper		Appelez-nous	-
1F	5304523527		Gasket, Secondary, Lower		Appelez-nous	-
2A	5304523539		Gasket, Door, White Model, Refrigerator		Appelez-nous	-
2B	5304523528		End Cover, Assembly, White Model, Refrigerator		Appelez-nous	-
2C	5304523544		Stop, Door, Lower Hinge		Appelez-nous	-
NI	5304523510		Plug, Button, White Model		Appelez-nous	-
