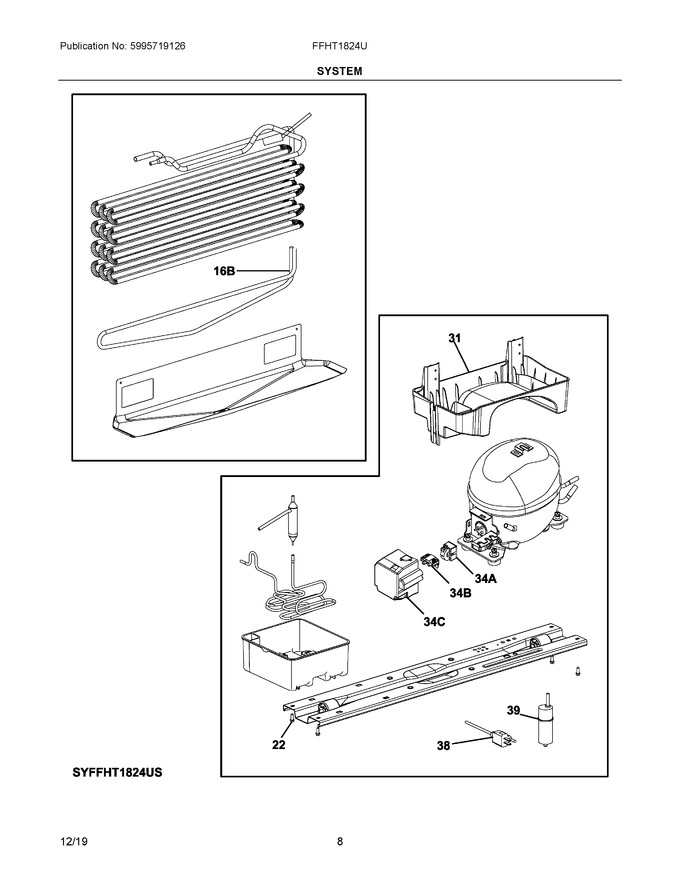

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 5304480019 | Screw, Tapping-locking |
|
$ 7.83 | |||||
| 31 | 5304520270 | Pan, Drain |
|
- | |||||
| 38 | 5304491328 | Power Cord, Electric |
|
$ 159.47 | |||||
| 39 | 5304519892 | Capacitor |
|
- | |||||
| 16B | 5304523559 | Heater, Defrost, Evaporator |
|
- | |||||
| 34A | 5304486750 | Starter, Compressor |
|
- | |||||
| 34B | 5304523504 | Protector, Compressor |
|
$ 76.59 | |||||
| 34C | 5304523503 | Cover, Electricals, Compressor |
|
- |
