View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

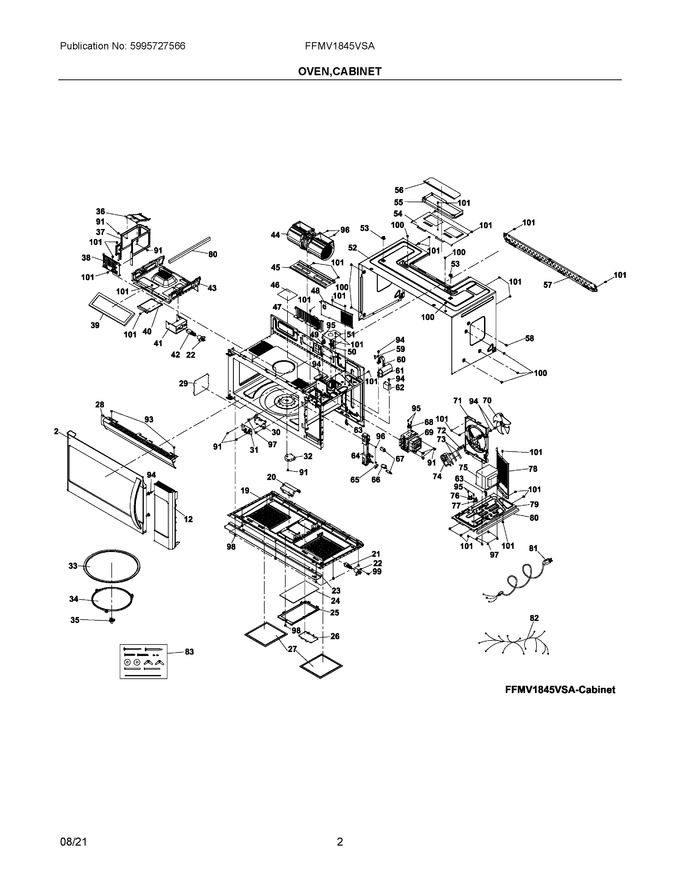

02 - Oven,cabinet
03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304522787 | Door Assembly, Complete, Stainless, W/handle |
|
$ 416.26 | |||||
| 12 | 5304522797 | Control Panel, Assembly, Complete, W/board |
|
- | |||||
| 19 | 5304522925 | Base, Unti Chassis |
|
- | |||||
| 20 | 5304522803 | Cover, Lamp |
|
- | |||||
| 21 | 5304522314 | Lamp, Led (Replaces: 5304522068) |
|
Immediately | $ 40.19 | ||||
| 22 | 5304522926 | Socket, Lamp |
|
- | |||||
| 23 | 5304522804 | Shield, Heat |
|
- | |||||
| 24 | 5304522805 | Lens, Lamp Cover |
|
- | |||||
| 25 | 5304522806 | Frame, Lamp Cover |
|
- | |||||
| 26 | 5304522807 | Cover, Base |
|
- | |||||
| 27 | 5304522066 | Filter, Grease, Washable |
|
- | |||||
| 28 | 5304522808 | Vent Grill, Front |
|
- | |||||
| 29 | 5304522809 | Cover, Wave Guide |
|
$ 7.44 | |||||
| 30 | 5304522810 | Bracket, Noise Filter |
|
- | |||||
| 31 | 5304522811 | Pc Board, Noise Filter |
|
$ 101.21 | |||||
| 32 | 5304522812 | Motor, Turntable |
|
- | |||||
| 33 | 5304522813 | Turntable, Glass |
|
- | |||||
| 34 | 5304522814 | Support, Turntable Ring |
|
- | |||||
| 35 | 5304522815 | Coupler, Turntable/motor |
|
$ 18.75 | |||||
| 36 | 5304522816 | Bracket, Sensor Rack |
|
- | |||||
| 37 | 5304522817 | Bracket, Air Duct |
|
- | |||||
| 38 | 5304522818 | Shield, Heat Protection |
|
- | |||||
| 39 | 5304522067 | Filter, Charcoal |
|
Immediately | $ 43.46 | ||||
| 40 | 5304522819 | Cover, Lamp |
|
- | |||||
| 41 | 5304522820 | Holder, Lamp |
|
- | |||||
| 42 | 5304461116 | Bulb, Oven Interior (Replaces: 5304522069) |
|
Immediately | $ 44.94 | ||||
| 43 | 5304522821 | Shield, Heat |
|
- | |||||
| 44 | 5304522822 | Blower, Vent Motor |
|
- | |||||
| 45 | 5304522823 | Bracket, Vent Motor |
|
- | |||||
| 46 | 5304522824 | Insulation |
|
- | |||||
| 47 | 5304522825 | Shield, Deflector |
|
- | |||||
| 48 | 5304522826 | Shield, Deflector, Top |
|
- | |||||
| 49 | 5304522827 | Thermostat, 105 Deg C |
|
- | |||||
| 50 | 5304522828 | Bracket, Magnetron |
|
- | |||||
| 51 | 5304522829 | Shield, Mica |
|
- | |||||
| 52 | 5304522830 | Wrapper, Outer Cabinet |
|
- | |||||
| 53 | 5304522831 | Nut Assembly, Mounting |
|
- | |||||
| 54 | 5304522832 | Cover, Blower |
|
- | |||||
| 55 | 5304522833 | Frame, Air Exhaust |
|
- | |||||
| 56 | 5304522834 | Damper, Air Exhaust |
|
- | |||||
| 57 | 5304522835 | Bracket, Wall/cabinet, Mounting |
|
- | |||||
| 58 | 5304522836 | Seal, Wrapper |
|
- | |||||
| 59 | 5304522837 | Diode, High Voltage |
|
- | |||||
| 60 | 5304522838 | Holder, Capacitor |
|
- | |||||
| 61 | 5304522839 | Capacitor, High Voltage |
|
- | |||||
| 62 | 5304522840 | Capacitor |
|
- | |||||
| 63 | 5304522841 | Clip |
|
- | |||||
| 64 | 5304522927 | Latch Hook, Assembly |
|
$ 23.86 | |||||
| 65 | 5304522842 | Lever, Latch Hook |
|
- | |||||
| 66 | 5304522843 | Microswitch, W-15-202c |
|
$ 23.38 | |||||
| 67 | 5304522844 | Microswitch, W-15-302c, (2) |
|
$ 23.18 | |||||
| 68 | 5304522845 | Thermostat, 180 Deg C |
|
- | |||||
| 69 | 5304522846 | Magnetron |
|
- | |||||
| 70 | 5304522847 | Blade, Fan |
|
- | |||||
| 71 | 5304522928 | Bracket, Fan |
|
- | |||||
| 72 | 5304522848 | Bracket, Reinforcement |
|
- | |||||
| 73 | 5304522849 | Padding, Shockproof, (2) |
|
- | |||||
| 74 | 5304522850 | Motor, Fan |
|
- | |||||
| 75 | 5304522851 | Transformer, High Voltage |
|
- | |||||
| 76 | 5304522929 | Thermostat, 60 Deg C |
|
- | |||||
| 77 | 5304522930 | Thermostat, 120 Deg C |
|
- | |||||
| 78 | 5304522852 | Cover, Wave Guide |
|
- | |||||
| 79 | 5304522853 | Base, Right Side |
|
- | |||||
| 80 | 5304522854 | Insulation, Sponge, (2) |
|
- | |||||
| 81 | 5304522855 | Cord, Power, Electric Servc |
|
- | |||||
| 82 | 5304522856 | Harness, Wiring, Main |
|
- | |||||
| 83 | 5304522857 | Mounting Kit, Wall/cabinet |
|
- | |||||
| 91 | 5304522858 | Screw, 9# St3x8, (16) |
|
- | |||||
| 93 | 5304522860 | Screw, 95# St4x12, (2) |
|
- | |||||
| 94 | 5304522861 | Screw, 19# M4x10, (7) |
|
- | |||||
| 95 | 5304522862 | Screw, 16# St3x6, (5) |
|
- | |||||
| 96 | 5304522863 | Screw, 14# St4x12, (4) |
|
- | |||||
| 97 | 5304522864 | Screw, 24# M4x8, (6) |
|
- | |||||
| 98 | 5304522865 | Screw, 169# M4x10, (7) |
|
- | |||||
| 99 | 5304522866 | Screw, 26# M4x10, (1) |
|
- | |||||
| 100 | 5304522867 | Screw, 6# St4x8, (8) |
|
- | |||||
| 101 | 5304522868 | Screw, 6# St4x8, (33) |
|
- | |||||
| NI | 5304522859 | Screw, 1# M5x10, (3) |
|
- |
