View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven,cabinet

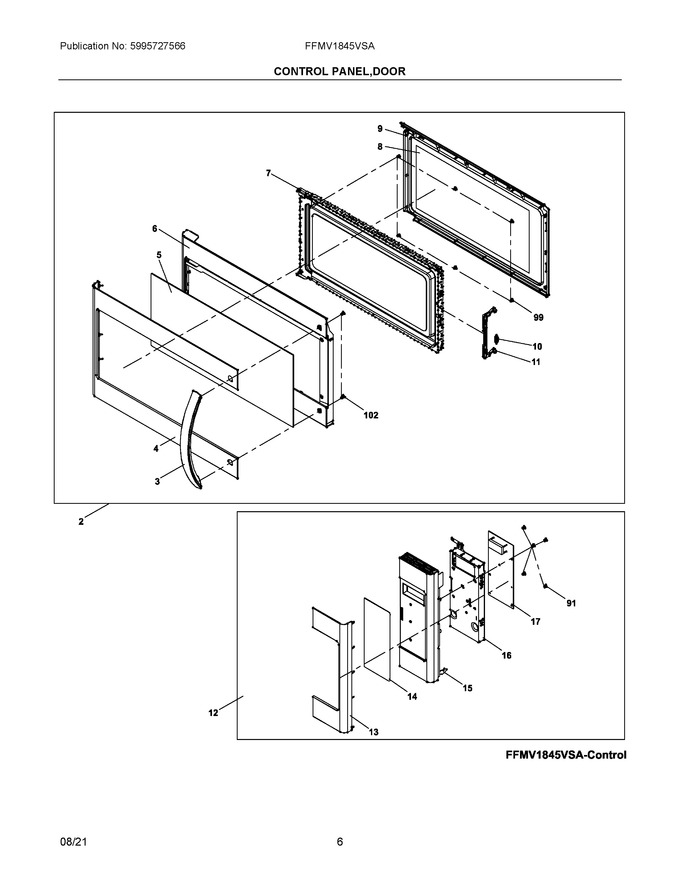

03 - Control Panel,door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304522787 | Door Assembly, Complete, Stainless, W/handle |
|
$ 416.26 | |||||
| 3 | 5304522788 | Handle, Door, Stainless |
|
- | |||||
| 4 | 5304522789 | Trim, Door, Stainless |
|
- | |||||
| 5 | 5304522790 | Glass, Door, Black, Outer |
|
- | |||||
| 6 | 5304522791 | Frame, Door, Outer |
|
- | |||||
| 7 | 5304522792 | Frame, Door, Inner |
|
- | |||||
| 8 | 5304522793 | Inlay, Door Film |
|
- | |||||
| 9 | 5304522794 | Choke Cover, Door, Inner |
|
- | |||||
| 10 | 5304522795 | Spring, Door Latch |
|
- | |||||
| 11 | 5304522796 | Latch, Door |
|
Immediately | $ 11.91 | ||||
| 12 | 5304522797 | Control Panel, Assembly, Complete, W/board |
|
- | |||||
| 13 | 5304522798 | Trim, Control Panel, Stainless |
|
- | |||||
| 14 | 5304522799 | Overlay, Touch Pad, Black |
|
$ 67.04 | |||||
| 15 | 5304522797 | Housing, Control Panel (Replaces: 5304522800) |
|
- | |||||
| 16 | 5304522801 | Bracket, Control Board |
|
- | |||||
| 17 | 5304522802 | Controller, Pc Board |
|
- | |||||
| 91 | 5304522858 | Screw, 9# St3x8, (16) |
|
- | |||||
| 99 | 5304522866 | Screw, 26# M4x10, (1) |
|
- | |||||
| 102 | 5304522869 | Screw, 95# St4x12, (2) |
|
- |
