SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

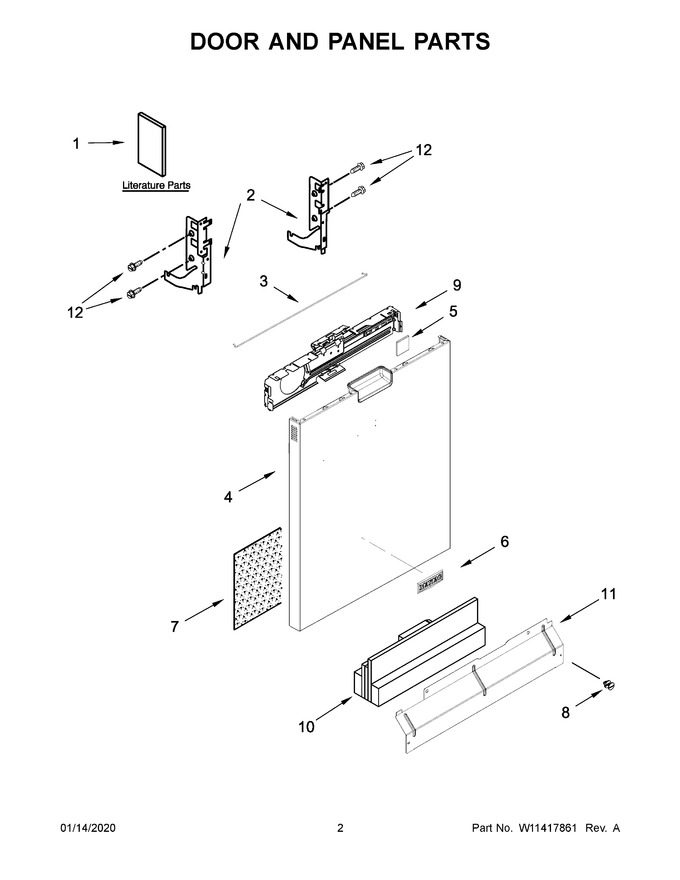

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11255742		Panel Front (includes Item 6) (black)   (Replaces: W11174352)				$ 399.98
5	W10622466		Block, Foam		Appelez-nous	-
6	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
10	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
11	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11A	WPW10526115		Access Panel (white)   (Replaces: W10526115)				$ 175.17
1A	W11236381		Energy Guide		Appelez-nous	-
1B	W11174463		Use & Care Guide		Appelez-nous	-
1C	W11290951		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
4A	W11255750		Panel Front (includes Item 6) (white)   (Replaces: W11174353)				$ 387.59
8A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77

    View Diagram in Separate Window       Print Part List
