Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11838891 Dishrack, Lower   (Replaces: W10525641) In-Stock Immediately $ 175.38

2 W10195416V Wheel & Transport Assembly   (Replaces: W10195416) In-Stock Immediately $ 34.96

3 W10861219 Silverware Basket Assembly   (Replaces: W10630199) Special Order $ 111.26

4 W10918189 Lid, Side   (Replaces: W10630198) Appelez-nous -
5 W10630197 Lid, Center Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

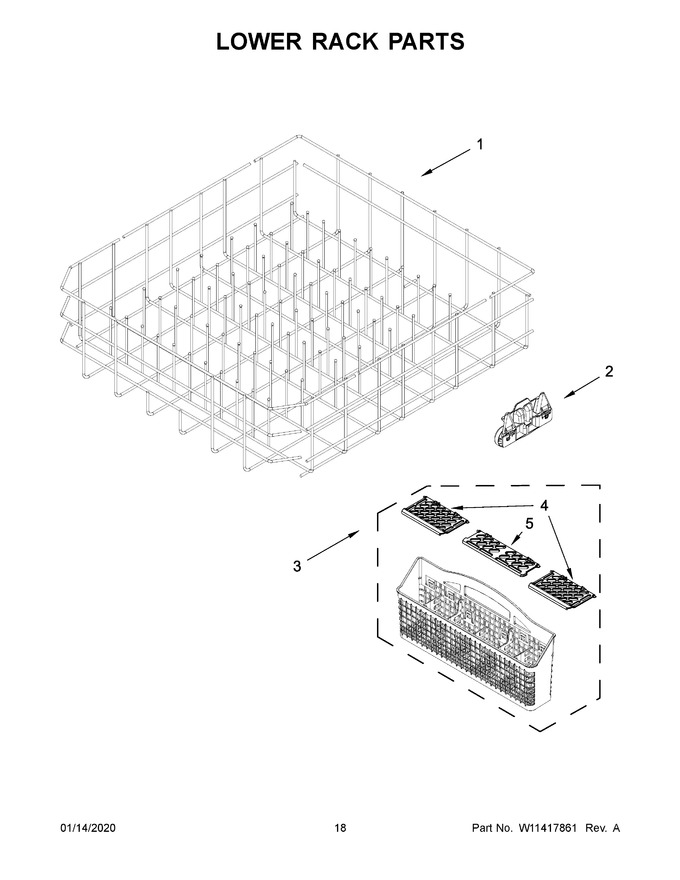

Diagram for MDB4949SHB1
