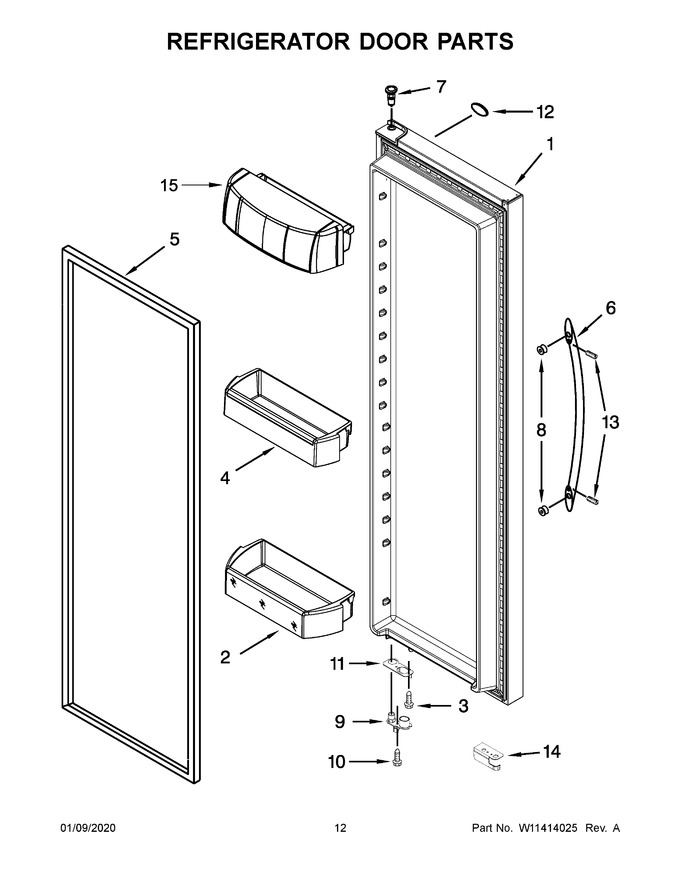

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11395845		Door, Refrigerator (includes Item 5) (black Stainless)   (Replaces: W11245972)		Appelez-nous	-
2	WPW10527272		Door Bin, Gallon   (Replaces: W10527272)				$ 83.80
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	WPW10308388		Door Bin, Shallow   (Replaces: W10308388)				$ 77.97
5	W11625680		Gasket, Door (black)   (Replaces: W10249914)		Appelez-nous	-
6	W11450223		Handle (black Stainless)   (Replaces: W11045529)			Immediately	$ 188.98
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 8.15
8	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
9	WPW10257201		Closer, Upper Cam Door (black)   (Replaces: W10257201)				$ 12.93
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop   (Replaces: W10888898)				$ 80.24
12	W11223753		Nameplate (badge)   (Replaces: W10884773)			Immediately	$ 87.26
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
14	W10789145		Cover, Door Stop (black)				$ 19.37
15	WPW10324760		Assembly, Utility Compartment   (Replaces: W10324760)				$ 85.60
14A	W11661847		Cover, Door Stop (grey)   (Replaces: W10789147)			Immediately	$ 31.71
1A	W11395843		Door, Refrigerator (includes Item 5) (stainless)   (Replaces: W11245964)		Appelez-nous	-
5A	W10355588		Gasket, Door (grey)   (Replaces: W10249918)				$ 319.21
6A	W11163764		Handle (stainless)   (Replaces: W11045530)			Immediately	$ 151.77
