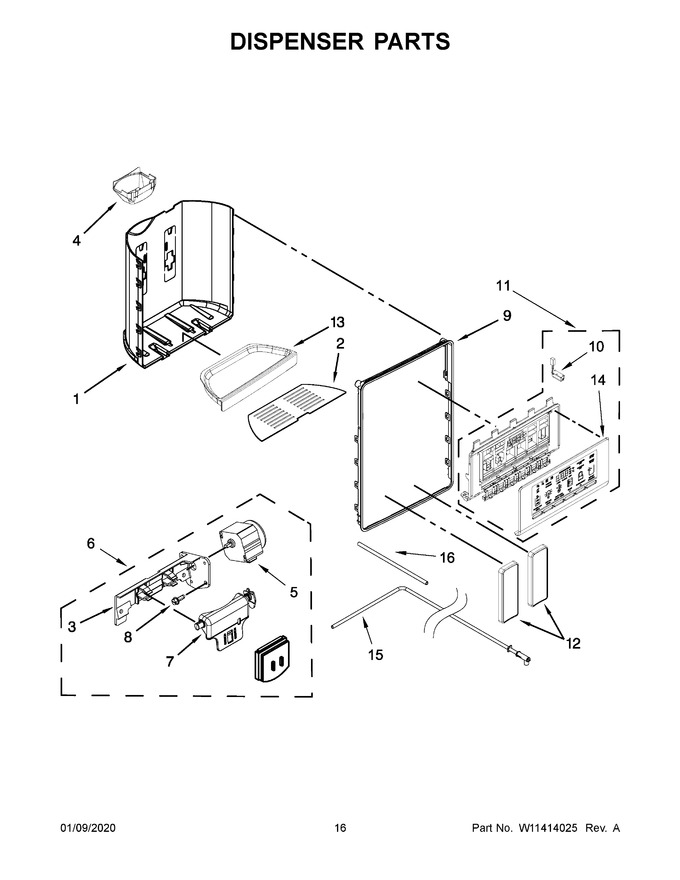

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10254255		Wall, Dispenser False (black)				$ 134.48
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W10838126		Assembly, Separator   (Replaces: W10493171)				$ 164.33
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10457583		Ring, Trim (chrome)				$ 118.21
10	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
11	W10822639		User Interface Assembly   (Replaces: W10798783)		Appelez-nous	-
12	W11812026		Pad, Ice And Water (black)   (Replaces: W10370577)				$ 63.03
13	W10254259		Tray, Housing (black)				$ 71.51
14	W10476316		Cover, Front (silver)		Appelez-nous	-
15	W11669938		Assembly, Spigot   (Replaces: W10386774)				$ 86.58
16	WPW10238092		Tube, Water   (Replaces: W10691732)			Immediately	$ 132.24
12A	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 70.82
13A	W10276225		Tray, Housing (satina)				$ 74.06
1A	W10276226		Wall, Dispenser False (satina)				$ 141.15
