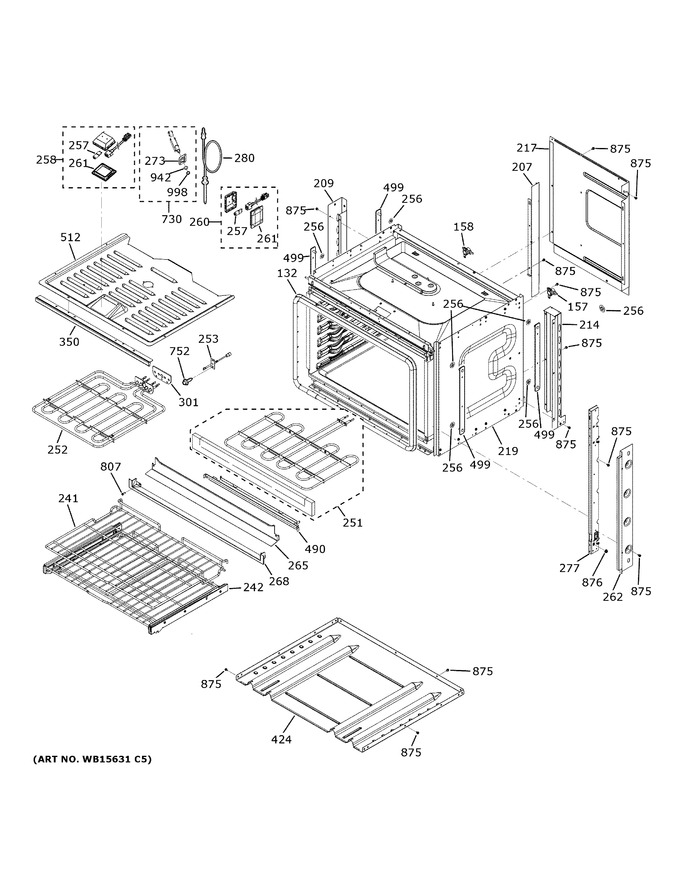

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Body Parts
Control Panel
Convection Fan
Door
Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 132 | WB35X32825 | Oven Door Gasket |
|
$ 44.83 | |||||
| 157 | WB24T10164 | Switch High Limit |
|
- | |||||
| 158 | WB24X35587 | Switch Limit |
|
- | |||||
| 207 | WB34T10134 | Divider Air Center |
|
- | |||||
| 209 | WB34X35265 | Channel Rear |
|
- | |||||
| 214 | WB55X10971 | Channel Rear |
|
- | |||||
| 217 | WB34T10136 | Cover - Upper Rear Duct |
|
- | |||||
| 219 | WB34X21913 | Retainer Insln Sde |
|
- | |||||
| 241 | WB48X35648 | Rack Oven Baking |
|
- | |||||
| 242 | WB48X32924 | Sliding Oven Rack Asm |
|
- | |||||
| 251 | WB44X21667 | Hidden Bake Element Kit |
|
- | |||||
| 252 | WB44X40787 | Element Broil |
|
- | |||||
| 252 | WB44X23640 | Element Broil Asm |
|
- | |||||
| 253 | WB21X10165 | Sensor Asm |
|
- | |||||
| 256 | WB01T10107 | Retainer Bolt |
|
- | |||||
| 257 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 258 | WB25X31221 | Top Halogen Lamp Asm |
|
- | |||||
| 259 | WB34X31280 | Oven Light Lens |
|
- | |||||
| 260 | WB25X31222 | Halogen Lamp Asm |
|
- | |||||
| 261 | WB34X31317 | Oven Light Lens |
|
- | |||||
| 262 | WB07T10772 | Trim Vertical Side Ss |
|
- | |||||
| 265 | WB07X35691 | Trim Vent Lower |
|
- | |||||
| 268 | WB07T10761 | Small Trim Bottom Cabinet |
|
- | |||||
| 273 | WB34K5140 | Probe Cover |
|
- | |||||
| 277 | WB07X35692 | Brace Vertical Left |
|
- | |||||
| 277 | WB07T10754 | Brace Vertical Right Blk |
|
- | |||||
| 280 | WG02F05721 | Meat Probe (Replaces: WB20T10024) |
|
Immediately | $ 63.86 | ||||
| 301 | WB35X21972 | Gasket Broil Element |
|
- | |||||
| 350 | WB07T10787 | Trim Broil Element (bk) |
|
- | |||||
| 424 | WB34T10158 | Cover Bottom Air Duct |
|
- | |||||
| 490 | WB55T10197 | Cover Hidden Bake |
|
- | |||||
| 499 | WB34X33153 | Cavity Brace Asm |
|
- | |||||
| 512 | WB37T10024 | Plate - Top Oven |
|
- | |||||
| 730 | WB18X23585 | Meat Probe Receptacle And Harness |
|
- | |||||
| 752 | WB01X21742 | Screw |
|
- | |||||
| 807 | WB1X1174 | Screw-nickle |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 876 | WB01T10127 | Lock Nut |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 998 | WG02A00927 | Nut Meat Probe (Replaces: WB1X5572) |
|
$ 67.26 |
