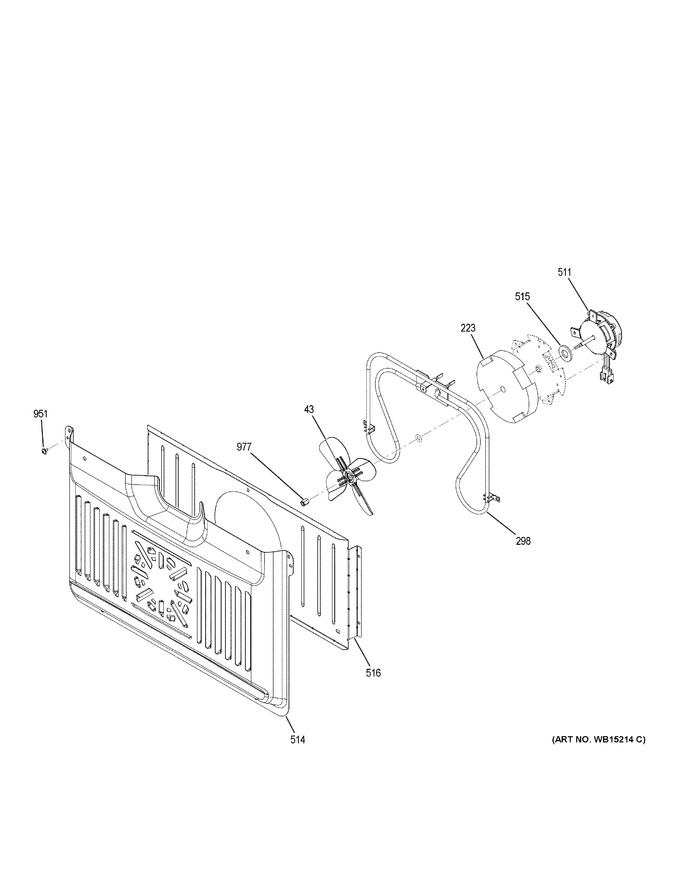

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 43 | WG02F07918 | Blade Fan Convection (Replaces: WB02T10598) |
|
$ 60.67 | |||||
| 223 | WB35T10259 | Insulation Convect Fan |
|
- | |||||
| 298 | WB44X21671 | Element Convx |
|
- | |||||
| 511 | WB26X27929 | Motor Convx |
|
- | |||||
| 514 | WB37T10023 | Cover Convection Fan |
|
- | |||||
| 515 | WB04T10071 | Gasket Conv Fan |
|
- | |||||
| 516 | WB37T10022 | Duct Convection Fan |
|
- | |||||
| 951 | WB01T10134 | Screw 8-18 T20 3/8 In |
|
- | |||||
| 977 | WB02T10608 | Nut Hex |
|
- |
