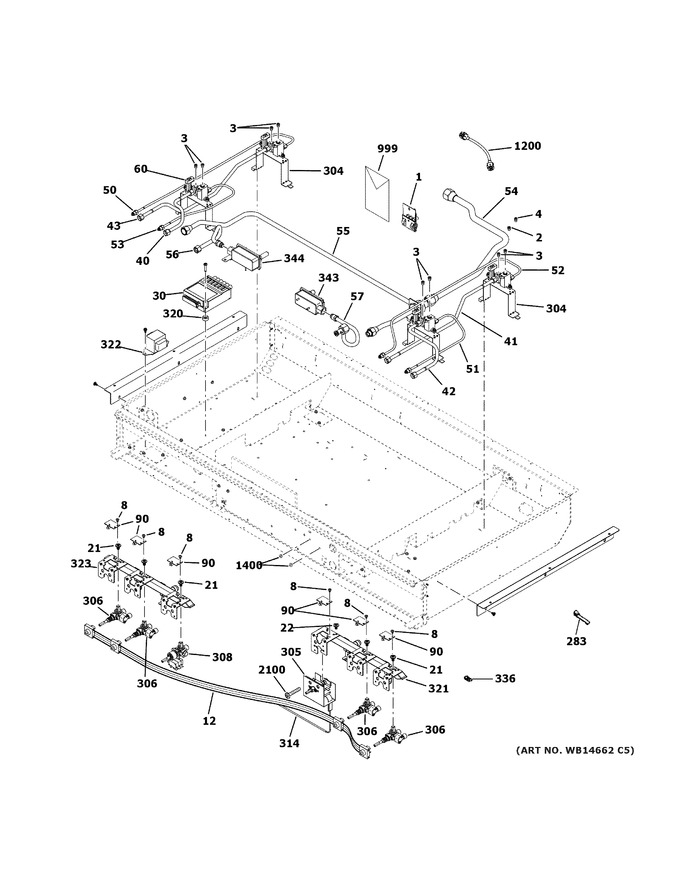

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB28K10553		Hi Altitude Orifice Kit		Appelez-nous	-
1	WS01F02108		Lp Conversion Kit   (Replaces: WB28K10538)				$ 119.34
2	WB28K10529		Spud Orifice Griddle (lp)		Appelez-nous	-
3	WS01F01438		Orifice Spud Simmer Lp   (Replaces: WB28T10118)			Immediately	$ 3.75
3	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 14.29
3	WS01F01437		Orifice Spud Lp Main   (Replaces: WB28T10117)				$ 3.75
3	WG02F01190		Orifice Spud (ng Main)   (Replaces: WB28T10155)				$ 14.29
4	WB28K10530		Spud Orifice Grill		Appelez-nous	-
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 79.32
12	WB18X31503		Harness Burner Box		Appelez-nous	-
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
22	WB01K10109		Scr 8 Hd 1/4-20		Appelez-nous	-
30	WB13K10037		Module Spark 4+0		Appelez-nous	-
40	WB28K10492		Tube And Nut Asm		Appelez-nous	-
41	WB28K10493		Tube And Nut Asm		Appelez-nous	-
42	WB28K10494		Tube And Nut Asm		Appelez-nous	-
43	WB28K10495		Tube And Nut Asm		Appelez-nous	-
50	WB28K10496		Tube And Nut Asm		Appelez-nous	-
51	WB28K10497		Tube And Nut Asm		Appelez-nous	-
52	WB28K10498		Tube And Nut Asm		Appelez-nous	-
53	WB28K10499		Tube And Nut Asm		Appelez-nous	-
54	WB28K10665		Tube Cooktop Supply Asm		Appelez-nous	-
55	WB28K10508		Tee Swaged Asm		Appelez-nous	-
56	WB28K10501		Tube Grill And Nut Asm		Appelez-nous	-
57	WB28K10500		Tube Griddle And Nut Asm		Appelez-nous	-
60	WB28T10114		Burner Injet		Appelez-nous	-
90	WS01F01723		Led Asm   (Replaces: WB25K10012)				$ 87.49
283	WB2K38		Clip Wire		Appelez-nous	-
304	WB02K10192		Bracket Injet		Appelez-nous	-
305	WS01F01661		Switch Thermostat   (Replaces: WB24K10047)				$ 145.92
306	WB21K10162		Valve Dual		Appelez-nous	-
308	WB21K10126		Switch Valve Asm		Appelez-nous	-
314	WS01F02656		Thermostat   (Replaces: WB21K10124)			Immediately	$ 141.17
320	WB1K10		Grommet Handle		Appelez-nous	-
321	WB28K10502		Pipe Manifold Asm Rt		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 169.78
323	WB28K10503		Pipe Manifold Asm		Appelez-nous	-
336	WB2X7066		Clip Wire		Appelez-nous	-
343	WB19K10032		Valve Safety		Appelez-nous	-
344	WS01F03661		Valve Safety   (Replaces: WB19K10033)				$ 113.30
999	31-10693		Pm Conversion Steps		Appelez-nous	-
999	31-17282		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	49-85247		Pm Owners Manual		Appelez-nous	-
999	31-10694		Pm Install Anti-tip Brkt		Appelez-nous	-
999	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 69.62
999	WB00X24074		Instruction Sheet		Appelez-nous	-
999	31-10757		Pm Helpful-hints		Appelez-nous	-
999	31-11126		Pm Install Instructions		Appelez-nous	-
1200	WB18K10047		Harness Hv		Appelez-nous	-
1400	WB01T10086		Nut Keps 6-32 Special		Appelez-nous	-
2100	WB01K10101		Scr 8-32 Ca Trp 7/8 S Ni		Appelez-nous	-
