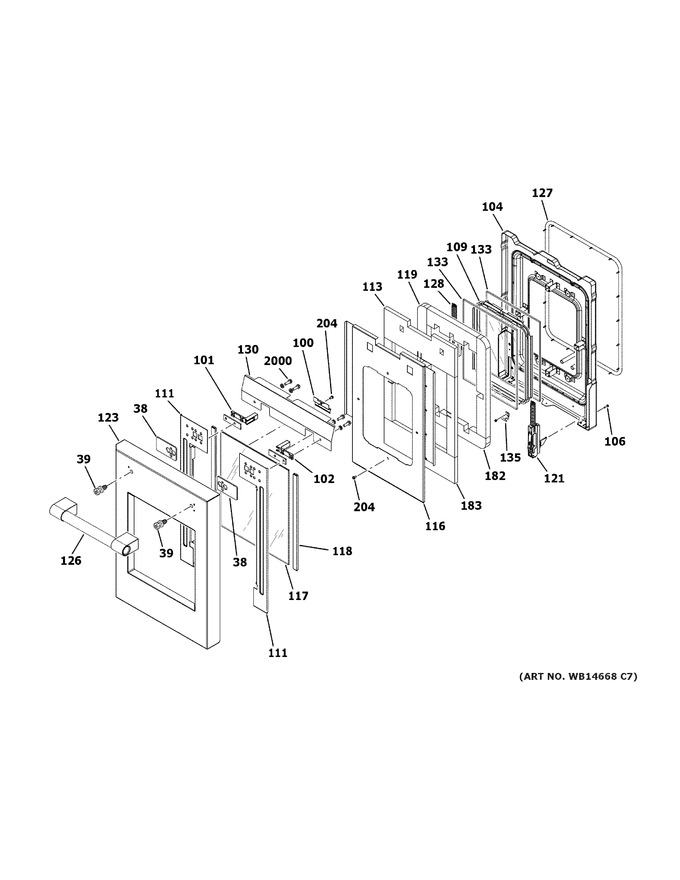

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38	WB02X31822		Pad End Cap		Appelez-nous	-
39	WR01A01801		Door Handle Fastener   (Replaces: WR01X11007)			Immediately	$ 12.71
100	WB02K10218		Bracket Glass		Appelez-nous	-
101	WB34X31807		Bracket Handle Left		Appelez-nous	-
102	WB34X31805		Bracket Handle Right		Appelez-nous	-
104	WB55K10060		Liner Oven Door Asm 12		Appelez-nous	-
106	WB01K10089		Scr 10-32 Tr T 7/8 S		Appelez-nous	-
109	WB34K10110		Spacer Window		Appelez-nous	-
111	WB34X31806		Support Outer Glass Right		Appelez-nous	-
111	WB34X31808		Support Outer Glass Left		Appelez-nous	-
113	WB35K10177		Ft Insul Door Top 12"		Appelez-nous	-
116	WB55K10058		Guard Insulation		Appelez-nous	-
117	WB57K10136		Glass Door 12"		Appelez-nous	-
118	WB04K10028		Pad Door		Appelez-nous	-
119	WB35K10182		Rr Insul Door Top 12"		Appelez-nous	-
121	WB10K10013		Hinge Door Rt(12)		Appelez-nous	-
123	WB56X31791		Stainless Steel Oven Door Panel		Appelez-nous	-
123	WB56X37488		Stainless Steel Oven Door Panel Small		Appelez-nous	-
126	WB15X35070		12 Handle And End Cap		Appelez-nous	-
127	WB02K10220		Gasket Door 12"		Appelez-nous	-
128	WB10K10014		Hinge Door Lt(12)		Appelez-nous	-
130	WB02K10261		Heat Deflector 12"		Appelez-nous	-
133	WB57K10137		Glass Door		Appelez-nous	-
135	WB02K10222		Clip Window		Appelez-nous	-
182	WB35K10185		Rr Insul Door Btm 12"		Appelez-nous	-
183	WB35K10180		Ft Insul Door Btm 12"		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
2000	WB01K10100		Scr 10-32 Trp 1/2		Appelez-nous	-
